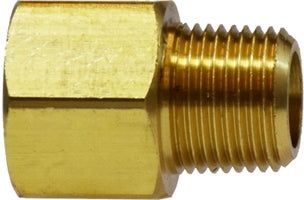

28195 (28-195) Midland Extender Adapter - 1/2" Female NPTF x 3/8" Male NPTF - Brass

28195 by Midland | 1/2" Female NPTF x 3/8" Male NPTF | Extender Adapter | Brass

Save $0.56 Save $0.56
$5.07
$5.07 - $5.07
$5.07
$4.51
$4.51 - $4.51
$4.51

Midland Industries
Brass Fitting - Pipe Thread - Extender Adapter

Inventory @ Manufacturers Warehouse: 2223 Units
Specifications for Variant SKU: 28195 Midland
Shape (Orientation): Straight
Ends Configuration: 1/2in Female NPTF, 3/8in Male NPTF
Material(s): Brass
Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards

SPECIFICATIONS

Applications: Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems Used With: Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe
SAE Rating: SAE# 130139 Conformance: Meets specifications and standards of ASA, ASME and SAE
Vibration: Fair Resistance. Temperature Range: -65°F to +250°F (-53°C to +121°C)
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Lead Free: Not Lead Free
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4" 1"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14 1-11-1/2
Working Pressure 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1000 PSI 1000 PSI
Thread OD 1/4" 3/8" 1/2" 5/8" 3/4" 1" 1-1/4"
Crossover Series:
120 375 222P 3200 R1 120AH 120B
Part Number Thread Size
Female NPTF x Male NPTF		 A Hex Approx. Weight
(Lbs.)
28190L
(28-190L)		 1/8" x 1/8" 0.83" 0.50" 0.03
28190
(28-190)		 1/8" x 1/8" 0.88" 0.56" 0.04
28191L
(28-191L)		 1/4" x 1/8" 0.94" 0.62" 0.04
28191
(28-191)		 1/4" x 1/8" 1.06" 0.75" 0.07
28192L
(28-192L)		 1/4" x 1/4" 1.00" 0.62" 0.04
28192
(28-192)		 1/4" x 1/4" 1.25" 0.75" 0.07
28198
(28-198)		 3/8" x 1/8" 1.00" 0.81" 0.06
28193L
(28-193L)		 3/8" x 1/4" 1.12" 0.81" 0.08
28193
(28-193)		 3/8" x 1/4" 1.25" 0.87" 0.09
28194L
(28-194L)		 3/8" x 3/8" 1.24" 0.81" 0.10
28194
(28-194)		 3/8" x 3/8" 1.25" 0.87" 0.11
28197
(28-197)		 1/2" x 1/8" 1.09" 0.94" 0.07
28199
(28-199)		 1/2" x 1/4" 1.46" 1.06" 0.08
28195L
(28-195L)		 1/2" x 3/8" 1.19" 0.93" 0.09
28195
(28-195)		 1/2" x 3/8" 1.47" 1.06" 0.18
28196L
(28-196L)		 1/2" x 1/2" 1.25" 0.94" 0.10
28196
(28-196)		 1/2" x 1/2" 1.66" 1.06" 0.12
28207
(28-207)		 3/4" x 3/8" 1.59" 1.25" 0.26
28208
(28-208)		 3/4" x 1/2" 1.69" 1.37" 0.14
28198L
(28-198L)		 3/4" x 1/2" 1.22" 1.25" 0.13
28209
(28-209)		 3/4" x 3/4" 1.69" 1.37" 0.34
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
