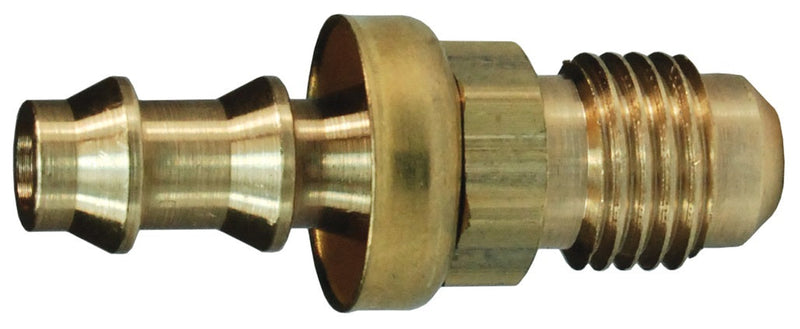

2820408CBC by Dixon Valve | Push-On Hose Barb Fitting | Male 45° SAE Swivel | with Brass Cap | 5/16" Tube OD | 1/4" Hose ID x 5/16" Male SAE 45° Flare | Brass

Save $2.49

$6.22

$6.22 - $6.22

$6.22

$3.73

$3.73 - $3.73

$3.73

Dixon Valve
Push-On Hose Barb Fitting | Male 45° SAE Swivel | Male UNF x Hose Barb

Intended for use with Lok-On (push-on style) hose only.

Specifications for Variant SKU: 2820408CBC Dixon
Series:	282 Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Hose Barb, 5/16in Male SAE 45 Flare
Material(s):	Brass

Features:
No hose clamps or ferrules are needed for installation.
Material:
Brass Yellow Plastic Cap (Part numbers that end with CBC have Brass Caps.)
Specifications:
Temperature Range: -40 to +150°F Pressure Rating: 350 PSI
Safety Notes:
Dixon push-on fittings are intended for use with Lok-On (push-on style) hose only. Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
Installation:
Assembly Instructions: 1. Trim hose end with smooth square cut. 2. Lubricate either push-on fitting, hose or both. 3. Insert push-on fitting into hose until first barb is in hose. 4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until end of hose is covered by yellow plastic cap. Disassembly Instructions: 1. Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose. 2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.

SAE Thread Size to UNF Thread Size Interchange
SAE Thread Number	SAE Tube O.D.	UNF Thread Size	SAE Thread Number	SAE Tube O.D.	UNF Thread Size
02	1/8"	5/16"-24	07	7/16"	11/16"-24
03	3/16"	3/8"-24	08	1/2"	3/4"-16
04	1/4"	7/16"-20	10	5/8"	7/8"-14
05	5/16"	1/2" - 20	12	3/4"	1-1/16"-14
06	3/8"	5/8"-18	-	-	-

Brass		Hose I.D.	Tube O.D.	Male UNF
Part Number	Previous Part Number
2820407C	282-0407	1/4"	1/4"	7/16"-20
2820407CBC**	-	1/4"	1/4"	7/16"-20
2820408C	282-0408	1/4"	5/16"	1/2"-20
2820408CBC**	-	1/4"	5/16"	1/2"-20
2820610C	282-0407	3/8"	3/8"	5/8"-18*
2820610CBC**	-	3/8"	3/8"	5/8"-18*
2820812C	282-0812	1/2"	1/2"	3/4"-16
2821014C	282-1014	5/8"	5/8"	7/8"-14
2821217C	282-1217	3/4"	3/4"	1-1/16"-14*
2821217CBC**	-	3/4"	3/4"	1-1/16"-14*

* Notch in nut for SAE identification

** 2 Brass cap on CBC parts
