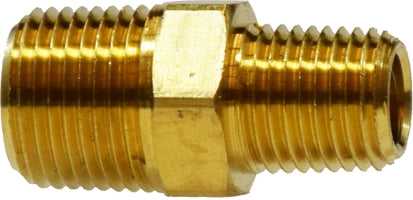

28227 Midland Reducing Hex Nipple - 1" Male NPTF x 3/4" Male NPTF - Brass

28227 by Midland | Reducing Hex Nipple | 1" Male NPTF x 3/4" Male NPTF | Brass

Save $25.25 Save $25.25
$63.13
$63.13 - $63.13
$63.13
$37.88
$37.88 - $37.88
$37.88

Midland Industries
Brass Fitting - Pipe Thread - Reducing Hex Nipple

Inventory @ Manufacturers Warehouse: 257 Units
Specifications for Variant SKU: 28227 Midland
Shape (Orientation): Straight
Ends Configuration: 1in Male NPTF, 3/4in Male NPTF
Material(s): Brass
Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards

SPECIFICATIONS

Applications: Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems Used With: Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe
SAE Rating: SAE# 130137 Conformance: Meets specifications and standards of ASA, ASME and SAE
Vibration: Fair Resistance. Temperature Range: -65°F to +250°F (-53°C to +121°C)
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Lead Free: Not Lead Free
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4" 1"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14 1-11-1/2
Working Pressure 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1000 PSI 1000 PSI
Thread OD 1/4" 3/8" 1/2" 5/8" 3/4" 1" 1-1/4"
Crossover Series:
123 216P 3325 379 122AH 122B
Part Number Thread Size
Male NPTF x Male NPTF		 A Hex Approx. Weight
(Lbs.)
28218 1/8" x 1/16" 1.00" 0.56" 0.05
28220L
(28-220L)		 1/4" x 1/8" 1.00" 0.56" 0.04
28220
(28-220)		 1/4" x 1/8" 1.19" 0.56" 0.04
28221L
(28-221L)		 3/8" x 1/8" 1.11" 0.68" 0.06
28221
(28-221)		 3/8" x 1/8" 1.22" 0.68" 0.07
28222L
(28-222L)		 3/8" x 1/4" 1.19" 0.68" 0.06
28222
(28-222)		 3/8" x 1/4" 1.41" 0.68" 0.07
28223L
(28-223L)		 1/2" x 1/4" 1.34" 0.87" 0.09
28223
(28-223)		 1/2" x 1/4" 1.62" 0.87" 0.12
28224L
(28-224L)		 1/2" x 3/8" 1.41" 0.87" 0.11
28224
(28-224)		 1/2" x 3/8" 1.62" 0.87" 0.12
28225L 3/4" x 1/2" 1.81" 1.06" 0.19
28225
(28-225)		 3/4" x 1/2" 1.50" 1.06" 0.15
28227 1" x 3/4" 2.31" 1.38" 0.38
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
