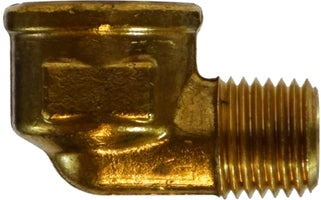

28259 Midland Barstock Reducing 90° Street Elbow - 1/8" Female NPTF x 1/16" Male NPTF - Brass

28259 by Midland | Barstock Reducing | 1/8" Female NPTF x 1/16" Male NPTF | 90° Street Elbow | Brass

Save $1.52 Save $1.52
$12.97
$12.97 - $12.97
$12.97
$11.45
$11.45 - $11.45
$11.45

Midland Industries
Brass Fitting - Pipe Thread - Forged Reducing 90° Street Elbow

This product will take 2-3 Weeks minimum to ship.

Inventory @ Manufacturers Warehouse: 5 Units
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 28259 Midland
Shape (Orientation): 90 Degree
Ends Configuration: 1/8in Female NPTF, 1/16in Male NPTF
Material(s): Brass
Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards

SPECIFICATIONS

Applications: Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems Used With: Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe
SAE Rating: N/A Conformance: Meets specifications and standards of ASA, ASME and SAE
Vibration: Fair Resistance. Temperature Range: -65°F to +250°F (-53°C to +121°C)
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Lead Free: Not Lead Free
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4" 1"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14 1-11-1/2
Working Pressure 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1000 PSI 1000 PSI
Thread OD 1/4" 3/8" 1/2" 5/8" 3/4" 1" 1-1/4"
Crossover Series:
128
Part Number Thread Size
Female NPTF x Male NPTF		 A B WrenchFlats Approx. Weight
(Lbs.)
28259* 1/8" x 1/16" - - - -
28260
(28-260)		 1/8" x 1/4" 0.50" 0.87" 0.71" 0.08
28261B*
(28-261B)		 1/4" x 1/8" 0.53" 0.72" 0.69" 0.07
28261
(28-261)		 1/4" x 1/8" 0.50" 0.81" 0.72" 0.06
28262
(28-262)		 1/4" x 3/8" 0.93" 1.06" 0.59" 0.12
28263
(28-263)		 3/8" x 1/4" 0.58" 0.94" 0.81" 0.07
28264
(28-264)		 3/8" x 1/2" 0.97" 1.36" 1.00" 0.28
28265
(28-265)		 1/2" x 3/8" 0.96" 1.37" 1.00" 0.22
28265B*
(28-265B)		 1/2" x 3/8" 1.03" 1.11" 1.00" 0.24

* Barstock
