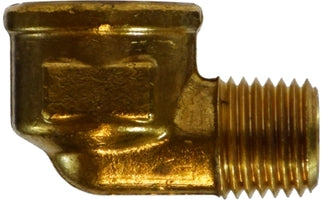

28265B (28-265B) Midland Barstock Reducing 90° Barstock Street Elbow - 1/2" Female NPTF x 3/8" Male NPTF - Brass

28265B by Midland | Barstock Reducing | 1/2" Female NPTF x 3/8" Male NPTF | 90° Street Elbow | Brass

Save $7.07 Save $7.07
$17.67
$17.67 - $17.67
$17.67
$10.60
$10.60 - $10.60
$10.60

Midland Industries
Brass Fitting - Pipe Thread - Forged Reducing 90° Street Elbow

Inventory @ Manufacturers Warehouse: 39 Units
Specifications for Variant SKU: 28265B Midland
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Female NPTF, 3/8in Male NPTF
Material(s): Brass
Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards

SPECIFICATIONS

Applications: Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems Used With: Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe
SAE Rating: N/A Conformance: Meets specifications and standards of ASA, ASME and SAE
Vibration: Fair Resistance. Temperature Range: -65°F to +250°F (-53°C to +121°C)
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Lead Free: Not Lead Free
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4" 1"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14 1-11-1/2
Working Pressure 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1000 PSI 1000 PSI
Thread OD 1/4" 3/8" 1/2" 5/8" 3/4" 1" 1-1/4"
Crossover Series:
128
Part Number Thread Size
Female NPTF x Male NPTF		 A B WrenchFlats Approx. Weight
(Lbs.)
28259* 1/8" x 1/16" - - - -
28260
(28-260)		 1/8" x 1/4" 0.50" 0.87" 0.71" 0.08
28261B*
(28-261B)		 1/4" x 1/8" 0.53" 0.72" 0.69" 0.07
28261
(28-261)		 1/4" x 1/8" 0.50" 0.81" 0.72" 0.06
28262
(28-262)		 1/4" x 3/8" 0.93" 1.06" 0.59" 0.12
28263
(28-263)		 3/8" x 1/4" 0.58" 0.94" 0.81" 0.07
28264
(28-264)		 3/8" x 1/2" 0.97" 1.36" 1.00" 0.28
28265
(28-265)		 1/2" x 3/8" 0.96" 1.37" 1.00" 0.22
28265B*
(28-265B)		 1/2" x 3/8" 1.03" 1.11" 1.00" 0.24

* Barstock
