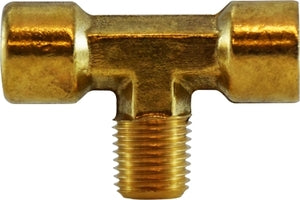

28281F (28-281F) Midland Forged Male Branch Tee - 1/8" Female NPTF x 1/8" Female NPTF x 1/8" Male NPTF - Brass

28281F by Midland | Forged Branch | 1/8" Female NPTF x 1/8" Female NPTF x 1/8" Male NPTF | Tee | Brass

Save $2.11 Save $2.11
$5.28
$5.28 - $5.28
$5.28
$3.17
$3.17 - $3.17
$3.17

Midland Industries
Brass Fitting - Pipe Thread - Forged Male Branch Tee
Specifications for Variant SKU: 28281F Midland
Shape (Orientation): Tee
Ends Configuration: 1/8in Female NPTF, 1/8in Female NPTF, 1/8in Male NPTF, Some Ends Match
Material(s): Brass
Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards

SPECIFICATIONS

Applications: Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems Used With: Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe
SAE Rating: N/A Conformance: Meets specifications and standards of ASA, ASME and SAE
Vibration: Fair Resistance. Temperature Range: -65°F to +250°F (-53°C to +121°C)
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Lead Free: Not Lead Free
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4" 1"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14 1-11-1/2
Working Pressure 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1000 PSI 1000 PSI
Thread OD 1/4" 3/8" 1/2" 5/8" 3/4" 1" 1-1/4"
Crossover Series:
131F T9
Part Number Thread Size
Female NPTF x Female NPTF x Male NPTF 		A B Body Width Approx. Weight
(Lbs.)
28281F
(28-281F)		 1/8" 0.75" 0.56" 0.50" 0.06
28282F
(28-282F)		 1/4" 1.00" 1.03" 0.46" 0.12
