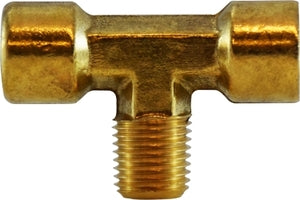

28282F (28-282F) Midland Forged Male Branch Tee - 1/4" Female NPTF x 1/4" Female NPTF x 1/4" Male NPTF - Brass

28282F by Midland | Forged Branch | 1/4" Female NPTF x 1/4" Female NPTF x 1/4" Male NPTF | Tee | Brass

Save $3.54 Save $3.54
$8.85
$8.85 - $8.85
$8.85
$5.31
$5.31 - $5.31
$5.31

Midland Industries
Brass Fitting - Pipe Thread - Forged Male Branch Tee

Inventory @ Manufacturers Warehouse: 469 Units
Specifications for Variant SKU: 28282F Midland
Shape (Orientation): Tee
Ends Configuration: 1/4in Female NPTF, 1/4in Female NPTF, 1/4in Male NPTF, Some Ends Match
Material(s): Brass
Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards

SPECIFICATIONS

Applications: Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems Used With: Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe
SAE Rating: N/A Conformance: Meets specifications and standards of ASA, ASME and SAE
Vibration: Fair Resistance. Temperature Range: -65°F to +250°F (-53°C to +121°C)
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Lead Free: Not Lead Free
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4" 1"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14 1-11-1/2
Working Pressure 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1000 PSI 1000 PSI
Thread OD 1/4" 3/8" 1/2" 5/8" 3/4" 1" 1-1/4"
Crossover Series:
131F T9
Part Number Thread Size
Female NPTF x Female NPTF x Male NPTF 		A B Body Width Approx. Weight
(Lbs.)
28281F
(28-281F)		 1/8" 0.75" 0.56" 0.50" 0.06
28282F
(28-282F)		 1/4" 1.00" 1.03" 0.46" 0.12

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
