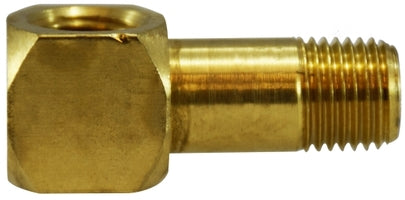

28328 (28-328) by Midland | (D.O.T. Approved) | 1/4" Female NPTF x 1/4" Male NPTF x 1-3/16" | Long | 90° Elbow | Brass

Save $1.22

$11.01

$11.01 - $11.01

$11.01

$9.79

$9.79 - $9.79

$9.79

Midland Industries
Brass Fitting - Pipe Thread - Long Street 90° Elbow (D.O.T. Approved)

Inventory @ Manufacturers Warehouse: 5 Units

Quantity

Specifications for Variant SKU: 28328 Midland
Shape (Orientation):	90 Degree
Ends Configuration:	1/4in Female NPTF, 1/4in Male NPTF, Some Ends Match
Material(s):	Brass
Applicable Specs & Approvals:	ASA, ASME, SAE

Applications:	Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems	Used With:	Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe
SAE Rating:	N/A	Conformance:	Meets specifications and standards of ASA, ASME and SAE
Vibration:	Fair Resistance.	Temperature Range:	-65°F to +250°F (-53°C to +121°C)
Tolerance:	+/- .02 on all dimensions. Dimension Data can change without notice.	Lead Free:	Not Lead Free

Pipe Size	1/16"	1/8"	1/4"	3/8"	1/2"	3/4"	1"
Thread Size	1/16-27	1/8-27	1/4-18	3/8-18	1/2-14	3/4-14	1-11-1/2
Working Pressure	1200 PSI	1200 PSI	1200 PSI	1200 PSI	1200 PSI	1000 PSI	1000 PSI
Thread OD	1/4"	3/8"	1/2"	5/8"	3/4"	1"	1-1/4"


Part Number	Thread Size Female NPTF x Male NPTF	A	B	Approx. Weight (Lbs.)
28440 (28-440)	1/8"	1-3/16"	0.50"	0.06
28441 (28-441)	1/8"	1-7/16"	0.50"	0.06
28442 (28-442)	1/8"	1-11/16"	0.50"	0.06
28443 (28-443)	1/8"	1-7/8"	0.50"	0.16
28328 (28-328)	1/4"	1-3/16"	0.75"	0.12
28329 (28-329)	1/4"	1-7/16"	0.75"	0.14
28330 (28-330)	1/4"	1-11/16"	0.75"	0.15
28333 (28-333)	3/8"	1-3/4"	0.87"	0.22

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
