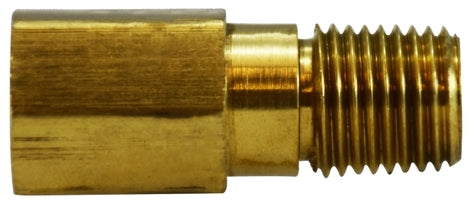

28338 (28-338) Midland Long Extension Adapter (D.O.T. Approved) - 1/4" Female NPTF x 1/4" Male NPTF - 1-9/16" Length - Brass

28338 by Midland | Long Extension | D.O.T. Approved | 1/4" Female NPTF x 1/4" Male NPTF | 1-9/16" Length | Straight | Adapter | Brass

Save $6.63

$16.57

$16.57 - $16.57

$16.57

$9.94

$9.94 - $9.94

$9.94

Midland Industries
Brass Fitting - Pipe Thread - Long Extension Adapter (D.O.T. Approved)

Inventory @ Manufacturers Warehouse: 37 Units

Specifications for Variant SKU: 28338 Midland
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female NPTF, 1/4in Male NPTF
Material(s):	Brass
Applicable Specs & Approvals:	Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards

SPECIFICATIONS

Applications:	Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems	Used With:	Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe
SAE Rating:	N/A	Conformance:	Meets specifications and standards of ASA, ASME and SAE
Vibration:	Fair Resistance.	Temperature Range:	-65°F to +250°F (-53°C to +121°C)
Tolerance:	+/- .02 on all dimensions. Dimension Data can change without notice.	Lead Free:	Not Lead Free

Pipe Size	1/16"	1/8"	1/4"	3/8"	1/2"	3/4"	1"
Thread Size	1/16-27	1/8-27	1/4-18	3/8-18	1/2-14	3/4-14	1-11-1/2
Working Pressure	1200 PSI	1200 PSI	1200 PSI	1200 PSI	1200 PSI	1000 PSI	1000 PSI
Thread OD	1/4"	3/8"	1/2"	5/8"	3/4"	1"	1-1/4"


Part Number	NPTF Thread Size	A	Hex	Approx. Weight (Lbs.)
28335 (28-335)	1/8"	1-1/4"	0.50"	0.04
28337 (28-337)	1/8"	3"	0.50"	0.09
28338 (28-338)	1/4"	1-9/16"	0.62"	0.07
28339 (28-339)	1/4"	1-13/16"	0.62"	0.08
28340 (28-340)	1/4"	2-1/16"	0.62"	0.10
