2840-MM08X100 Kuri-Tec by Kuriyama | 2840 Series | 98 Shore "A" Ether-Based Heavy Duty Polyurethane Metric Tubing | 5mm ID | 8mm OD | 1.5" Wall Thickness | 100ft Length

2840-MM08X100 Kuri-Tec by Kuriyama | 2840 Series | 98 Shore "A" Ether-Based Heavy Duty Polyurethane Metric Tubing | 5mm ID | 8mm OD | 1.5" Wall Thickness | 100ft Length

Save $62.01 Save $62.01
$127.41
$127.41 - $127.41
$127.41
$65.40
$65.40 - $65.40
$65.40

Kuri Tec® by Kuriyama

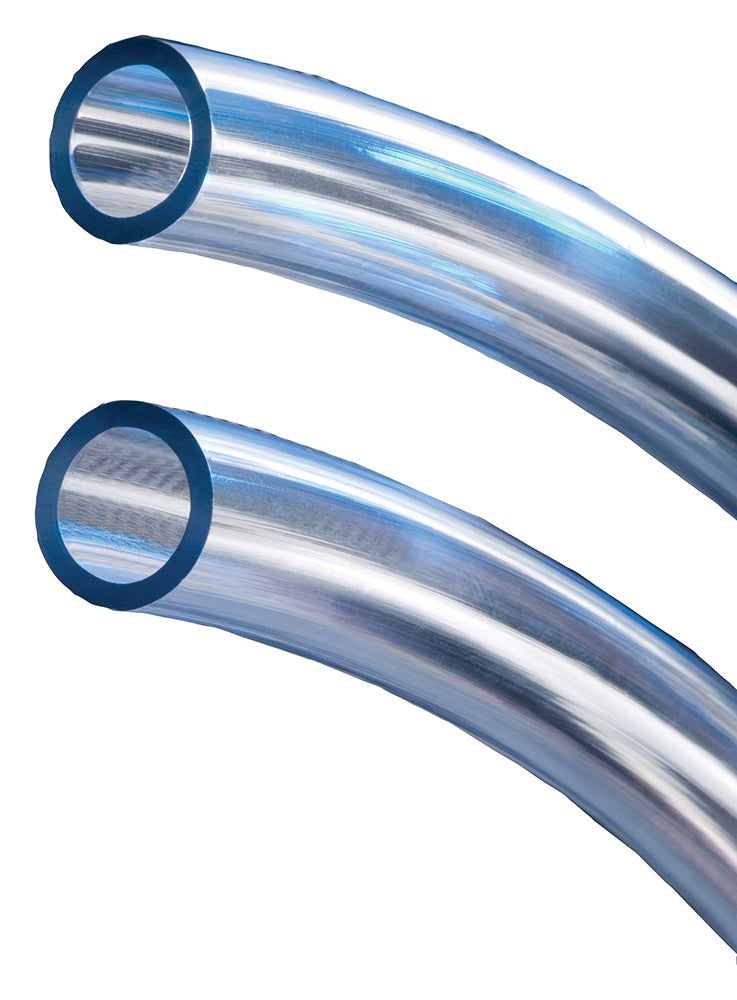

2840 Series | 98 Shore "A" Ether-Based Heavy Duty Polyurethane Tubing

Resistant to cuts, and damage from abrasion such as dragging or rubbing against rough objects.

Made in North America.

Package Quantity: 100 Foot

Specifications for Variant SKU: 2840-MM08X100 Kuriyama | 100 |
Brand: Kuri Tec
Series: 2840 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 5.0mm
Outer Diameter: 8.0mm
Tubing Construction: Polyurethane
Applicable Specs & Approvals: FDA 21 CFR Part 170.199, NSF 51, NSF 61, RoHS Compliant

SPECIFICATIONS

Applications: Abrasive slurry transfer.
Feed and return lines.
Granular transfer lines.
Lubrication lines.
Metering pumps.
Robotics control lines.
Transfer of air and fluids under severe conditions.
Tube: Clear 98 Shore "A" Durometer ether based polyurethane tubing formulated with ingredients in compliance with applicable FDA requirements.
Cover: - Service Temperature Range: -40°F (-40°C) to +175°F (+80°C)
Specifications: FDA
NSF
Phthalate Free
RoHS
Other Features:
  • Abrasion Resistant Polyurethane - Resistant to cuts, and damage from abrasion such as dragging or rubbing against rough objects. Tubing is up to three times more wear resistant than similar PVC tubing.
  • Food Grade Materials - Tubing complies with applicable FDA, NSF 51 and NSF 61 requirements.
  • Oil Resistant - Remains flexible when exposed to most fuels and oils. Meets ARPM Class A rating (high oil resistance).
  • Hydrolysis Resistant - Ether based material good for water applications.
  • Low Moisture Absorption Rate - Helps eliminate cross contamination of the transferred materials, and instances of swelling which can shorten tubing life.
  • High Cycle Strength - Designed to resist damage resulting from constant flex applications.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
Part Number
100ft		 Part Number
500ft		 Nominal OD Nominal ID Nominal Wall Working
Pressure (PSI)
(mm) (in) (mm) (in) (mm) (in) at 70°F (20°C)
2840-MM04X100 2840-MM04X500 4.0mm 0.157" 2.4mm 0.094" 0.8mm 0.031" 200 PSI
2840-MM06X100 2840-MM06X500 6.0mm 0.236" 4.0mm 0.157" 1.0mm 0.039" 180 PSI
2840-MM08X100 2840-MM08X500 8.0mm 0.315" 5.0mm 0.197" 1.5mm 0.059" 175 PSI
2840-MM10X100 2840-MM10X500 10.0mm 0.394" 6.5mm 0.256" 1.75mm 0.069" 150 PSI
2840-MM12X100 2840-MM12X500 12.0mm 0.472" 8.0mm 0.315" 2.0mm 0.079" 150 PSI
