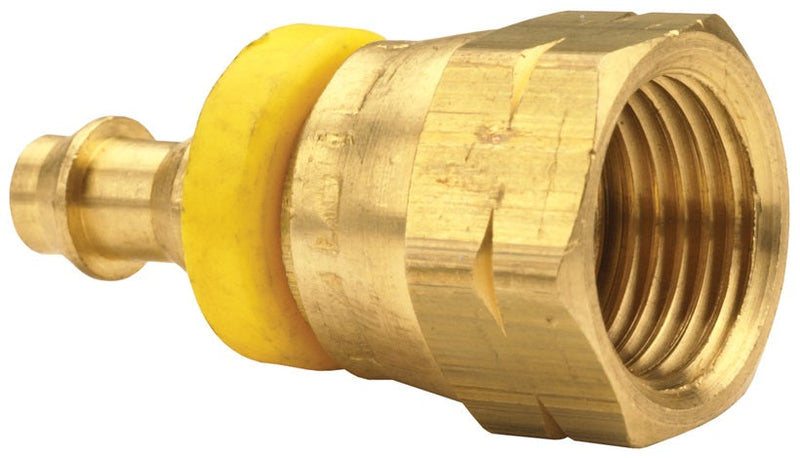

2840410C by Dixon Valve | Push-On Hose Barb Fitting | Female 45° SAE Swivel | 3/8" Tube OD | 1/4" Hose ID x 3/8" Female SAE 45° Flare | Brass

2840410C by Dixon Valve | Push-On Hose Barb Fitting | Female 45° SAE Swivel | 3/8" Tube OD | 1/4" Hose ID x 3/8" Female SAE 45° Flare | Brass

Save $0.52 Save $0.52
$6.12
$6.12 - $6.12
$6.12
$5.60
$5.60 - $5.60
$5.60

Dixon Valve
Push-On Hose Barb Fitting | Female 45° SAE Swivel x Hose Barb

Intended for use with Lok-On (push-on style) hose only.
Specifications for Variant SKU: 2840410C Dixon
Series: 284 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, 3/8in Female SAE 45° Flare
Material(s): Brass
Features:
  • No hose clamps or ferrules are needed for installation.
  • Properly grips push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
Material:
  • Brass
  • Yellow Plastic Cap (Part numbers that end with CBC have Brass Caps.)
Specifications:
  • Temperature Range: -40 to +150°F
  • Pressure Rating: 350 PSI
Safety Notes:
  • Dixon push-on fittings are intended for use with Lok-On (push-on style) hose only.
  • Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
Installation:
  • Assembly Instructions:
    • 1. Trim hose end with smooth square cut.
    • 2. Lubricate either push-on fitting, hose or both.
    • 3. Insert push-on fitting into hose until first barb is in hose.
    • 4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until end of hose is covered by yellow plastic cap.
  • Disassembly Instructions:
    • 1. Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose.
    • 2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.
SAE Thread Size to UNF Thread Size Interchange
SAE Thread Number SAE Tube O.D. UNF Thread Size SAE Thread Number SAE Tube O.D. UNF Thread Size
02 1/8" 5/16"-24 07 7/16" 11/16"-24
03 3/16" 3/8"-24 08 1/2" 3/4"-16
04 1/4" 7/16"-20 10 5/8" 7/8"-14
05 5/16" 1/2" - 20 12 3/4" 1-1/16"-14
06 3/8" 5/8"-18 - - -
Brass Hose I.D. Tube O.D. Female UNF
Part Number Previous
Part Number
2840410C 284-0410 1/4" 3/8" 5/8"-18
2840410CBC* - 1/4" 3/8" 5/8"-18
2840510C 284-0510 5/16" 3/8" 5/8"-18
2840610C 284-0610 3/8" 3/8" 5/8"-18
2840610CBC* - 3/8" 3/8" 5/8"-18
2841217C 284-1217 3/4" 3/4" 1-1/16"-14
2841217CBC* - 3/4" 3/4" 1-1/16"-14

** 2 Brass cap on CBC parts
