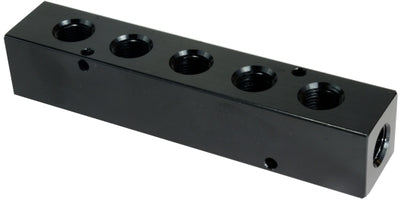

28460 (28-460) by Midland | 5 Port Pneumatic Manifold | 1/4" Female NPT Outlet x 3/8" Female NPT Inlet | Black Anodized Aluminum

28460 (28-460) by Midland | 5 Port Pneumatic Manifold | 1/4" Female NPT Outlet x 3/8" Female NPT Inlet | Black Anodized Aluminum

Save $13.61 Save $13.61
$34.02
$34.02 - $34.02
$34.02
$20.41
$20.41 - $20.41
$20.41

Midland Industries
Pneumatic Manifold - Black Anodized Aluminum

Media: Air and liquids compatible with materials of construction.

Inventory @ Manufacturers Warehouse: 50 Units
Specifications for Variant SKU: 28460 Midland
Shape (Orientation): Multi-Directional
Ends Configuration: 1/4in Manifold NPT, 3/8in Manifold NPT, Some Ends Match
Material(s): Anodized Aluminum
Features:
  • Aluminum with black anodizing for corrosion resistance.
  • Max Operating Pressure: 1000 PSI
  • Temperature: -10° to 200°F
  • Ports column = # of ports in top of manifold
Part Number Ports A - Outlet
NPT		 B - Inlet
NPT		 C D E F G H J K M R
28456
(28-456)		 10 1/8" 1/4" 1.00" 0.50" 0.75" 6.00" 0.17" 7.75" 0.70" 0.50" 0.88" 0.15"
28460
(28-460)		 5 1/4" 3/8" 1.25" 0.63" 0.88" 2.63" 0.20" 4.75" 0.89" 0.63" 1.06" 0.18"
