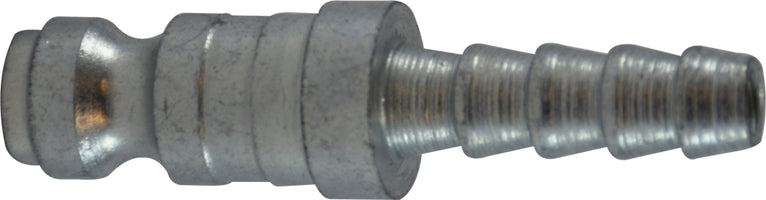

28524 (28-524) Midland Automotive/Parker Interchange (Tru-Flate) Pneumatic Hose Barb Plug - 3/8" Hose ID - 3/8" Body size - Steel

28524 by Midland | Automotive/Parker Interchange (Tru-Flate) | Pneumatic Hose Barb Plug | 3/8" Hose ID | 3/8" Body size | Steel

Save $0.97

$2.42

$2.42 - $2.42

$2.42

$1.45

$1.45 - $1.45

$1.45

Midland Industries
Automotive/ Parker Interchange (Tru-flate) Pneumatic Coupler

Inventory @ Manufacturers Warehouse: 309 Units

Specifications for Variant SKU: 28524 Midland
Shape (Orientation):	Straight
Ends Configuration:	3/8in Hose Barb, 3/8in Male Tru-Flate QD Interchange
Material(s):	Steel

Features:
Brass couplers are brass bodies with brass valves, 6 steel locking balls, NBR seal, and stainless steel springs. Steel couplers are steel bodies with steel valves, 6 stainless steel locking balls, NBR seal, and stainless steel springs. Plugs are brass or steel with green blue zinc plating. Unique design has been field proven as a long-lasting, high performance coupling especially when used with pneumatic tools. Maximum working pressure is 300 PSI.

Couplers			Plugs
Brass Male Coupler			Brass Male Plug
Part Number	Thread Size	Body Size	Part Number	Thread Size	Body Size
28515 (28-515)	1/8"	1/4"	-	-	-
28516 (28-516)	1/4"	1/4"	28510B (28-510B)	1/4"	1/4"
28517 (28-517)	3/8"	1/4"	-	-	-

Brass Female Coupler			Brass Female Plug
Part Number	Thread Size	Body Size	Part Number	Thread Size	Body Size
28507 (28-507)	1/4"	1/4"	28501B (28-501B)	1/4"	1/4"
28508 (28-508)	3/8"	1/4"	-	-	-

Steel Male Coupler			Steel Male Plug
Part Number	Thread Size	Body Size	Part Number	Thread Size	Body Size
-	-	-	28509 (28-509)	1/8"	1/4"
28516S (28-516S)	1/4"	1/4"	28510 (28-510)	1/4"	1/4"
-	-	-	28511 (28-511)	3/8"	1/4"
28514S (28-514S)	1/4"	3/8"	28512 (28-512)	1/4"	3/8"
28519S (28-519S)	3/8"	3/8"	28513 (28-513)	3/8"	3/8"

Steel Female Coupler			Steel Female Plug
Part Number	Thread Size	Body Size	Part Number	Thread Size	Body Size
-	-	-	28500 (28-500)	1/8"	1/4"
28507S (28-507S)	1/4"	1/4"	28501 (28-501)	1/4"	1/4"
-	-	-	28502 (28-502)	3/8"	1/4"
28525S (28-525S)	1/4"	3/8"	28503 (28-503)	1/4"	3/8"
28526S (28-526S)	3/8"	3/8"	28504 (28-504)	3/8"	3/8"

Brass Hose Barb Coupler			Steel Hose Barb Plug
Part Number	Hose ID	Body Size	Part Number	Hose ID	Body Size
28528 (28-528)	1/4"	1/4"	28518 (28-518)	1/4"	1/4"
28530 (28-530)	3/8"	1/4"	28520 (28-520)	3/8"	1/4"
28536 (28-536)	1/4"	3/8"	28523 (28-523)	1/4"	3/8"
-	-	-	28524 (28-524)	3/8"	3/8"

Brass Push-On Hose Barb Coupler			Steel Push-On Hose Barb Plug
Part Number	Hose ID	Body Size	Part Number	Hose ID	Body Size
28531 (28-531)	1/4"	1/4"	28521 (28-521)	1/4"	1/4"
28532 (28-532)	3/8"	1/4"	28522 (28-522)	3/8"	1/4"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
