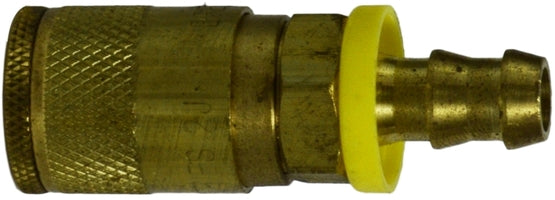

28531 by Midland | Automotive/Parker Interchange (Tru-Flate) | Pneumatic Push-On Hose Barb Coupler | 1/4" Hose ID | 1/4" Body size | Brass

Original price $17.94 - Original price $17.94
Original price $17.94
$27.97
$27.97 - $27.97
Current price $27.97

Midland Industries
Automotive/ Parker Interchange (Tru-flate) Pneumatic Coupler

This product will take 2-3 Weeks minimum to ship.

Inventory @ Manufacturers Warehouse: 20 Units

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 28531 Midland
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, 1/4in Female Tru-Flate QD Interchange
Material(s): Brass
Seal Material(s): NBR
Features:
  • Brass couplers are brass bodies with brass valves, 6 steel locking balls, NBR seal, and stainless steel springs.
  • Steel couplers are steel bodies with steel valves, 6 stainless steel locking balls, NBR seal, and stainless steel springs.
  • Plugs are brass or steel with green blue zinc plating.
  • Unique design has been field proven as a long-lasting, high performance coupling especially when used with pneumatic tools.
  • Maximum working pressure is 300 PSI.
Couplers Plugs
Brass Male Coupler

Brass Male Plug

Part Number Thread Size Body Size Part Number Thread Size Body Size
28515
(28-515)
1/8" 1/4" - - -
28516
(28-516)
1/4" 1/4" 28510B
(28-510B)
1/4" 1/4"
28517
(28-517)
3/8" 1/4" - - -
Brass Female Coupler

Brass Female Plug

Part Number Thread Size Body Size Part Number Thread Size Body Size
28507
(28-507)
1/4" 1/4" 28501B
(28-501B)
1/4" 1/4"
28508
(28-508)
3/8" 1/4" - - -
Steel Male Coupler

Steel Male Plug

Part Number Thread Size Body Size Part Number Thread Size Body Size
- - - 28509
(28-509)
1/8" 1/4"
28516S
(28-516S)
1/4" 1/4" 28510
(28-510)
1/4" 1/4"
- - - 28511
(28-511)
3/8" 1/4"
28514S
(28-514S)
1/4" 3/8" 28512
(28-512)
1/4" 3/8"
28519S
(28-519S)
3/8" 3/8" 28513
(28-513)
3/8" 3/8"
Steel Female Coupler

Steel Female Plug

Part Number Thread Size Body Size Part Number Thread Size Body Size
- - - 28500
(28-500)
1/8" 1/4"
28507S
(28-507S)
1/4" 1/4" 28501
(28-501)
1/4" 1/4"
- - - 28502
(28-502)
3/8" 1/4"
28525S
(28-525S)
1/4" 3/8" 28503
(28-503)
1/4" 3/8"
28526S
(28-526S)
3/8" 3/8" 28504
(28-504)
3/8" 3/8"
Brass Hose Barb Coupler

Steel Hose Barb Plug

Part Number Hose ID Body Size Part Number Hose ID Body Size
28528
(28-528)
1/4" 1/4" 28518
(28-518)
1/4" 1/4"
28530
(28-530)
3/8" 1/4" 28520
(28-520)
3/8" 1/4"
28536
(28-536)
1/4" 3/8" - - -
- - - 28524
(28-524)
3/8" 3/8"
Brass Push-On Hose Barb Coupler

Steel Push-On Hose Barb Plug

Part Number Hose ID Body Size Part Number Hose ID Body Size
28531
(28-531)
1/4" 1/4" 28521
(28-521)
1/4" 1/4"
28532
(28-532)
3/8" 1/4" 28522
(28-522)
3/8" 1/4"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
