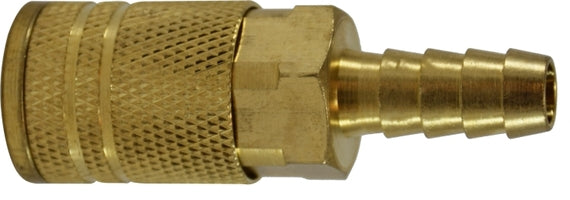

28564 (28-564) Midland Industrial Interchange Pneumatic Hose Barb Coupler - 3/8" Hose ID - 1/4" Body Size - Brass

28564 by Midland | Industrial Interchange Pneumatic Hose Barb Coupler | 3/8" Hose ID | 1/4" Body Size | Brass

Save $4.89 Save $4.89
$12.22
$12.22 - $12.22
$12.22
$7.33
$7.33 - $7.33
$7.33

Midland Industries
Industrial Interchange Pneumatic Coupler - Brass

Industry standard design for compressed air, water, grease, paint, limited vacuum and limited gases.

Inventory @ Manufacturers Warehouse: 13 Units
Specifications for Variant SKU: 28564 Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 1/4in Female Industrial Pneumatic QD Interchange
Material(s): Brass
Seal Material(s): NBR
Features:
  • Couplers have a brass body with brass valves.
  • 6 Steel locking balls (1/2" body size has 8 steel locking balls).
  • NBR seal.
  • Stainless steel springs.
  • Manual retract for connecting and disconnecting.
  • Maximum working pressure is 250 PSI.
Couplers Plugs
Brass Female Coupler

 Brass Female Plug
Part Number Body Size Thread Size Part Number Body Size Thread Size
28540
(28-540)		 1/4" 1/4" 28534B
(28-534B)		 1/4" 1/4"
28541
(28-541)		 1/4" 3/8" - - -
Brass Male Coupler

 Brass Male Plug
Part Number Body Size Thread Size Part Number Body Size Thread Size
28552
(28-552)		 1/4" 1/4" 28546B
(28-546B)		 1/4" 1/4"
28553
(28-553)		 1/4" 3/8" - - -
Brass Hose Barb Coupler
Part Number Body Size Barb Size
28562
(28-562)		 1/4" 1/4"
28564
(28-564)		 1/4" 3/8"
Brass Push-On Coupler
Part Number Body Size Barb Size
28565
(28-565)		 1/4" 1/4"
28566
(28-566)		 1/4" 3/8"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
