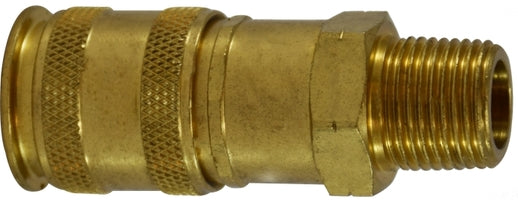

28579 (28-579) Midland Universal Series Pneumatic Male Coupler - 1/4" Male NPT - 1/4" Body Size - Brass

28579 by Midland | Universal Series Pneumatic Coupler | 1/4" Male NPT | 1/4" Body Size | Brass

Save $1.62 Save $1.62
$10.40
$10.40 - $10.40
$10.40
$8.78
$8.78 - $8.78
$8.78

Midland Industries
Universal Series Pneumatic Coupler

Inventory @ Manufacturers Warehouse: 838 Units
Specifications for Variant SKU: 28579 Midland
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPT, 1/4in Female Universal Pneumatic QD Interchange
Material(s): Brass
Seal Material(s): NBR
Features:
  • Automatic Coupler means flow will cut off automatically at time of disconnect.
  • Brass Couplers have brass body and brass sleeve with brass valve, 6 steel locking balls, NBR seal and 6 stainless steel springs.
  • Stainless Steel Couplers have stainless steel body and stainless steel sleeve with stainless steel valve, 6 steel locking balls, FKM seal, and stainless steel springs.
  • Coupler compatible with ARO 210, Parker Interchange and Industrial Interchange plugs.
  • Maximum working pressure is 250 PSI.
Couplers Plugs
Brass Male Coupler


Part Number Thread Size Body Size Part Number Thread Size Body Size
28579
(28-579)		 1/4" 1/4" - - -
28589
(28-589)		 3/8" 1/4" - - -
Brass Female Coupler


Part Number Thread Size Body Size Part Number Thread Size Body Size
28560
(28-560)		 1/4" 1/4" - - -
Brass Hose Barb Coupler


Part Number Thread Size Body Size Part Number Thread Size Body Size
28690
(28-690)		 1/4" 1/4" - - -
28691
(28-691)		 3/8" 1/4" - - -
Stainless Steel Male Coupler

 Stainless Steel Industrial Male Plug
Part Number Thread Size Body Size Part Number Thread Size Body Size
28579SS
(28-579SS)		 1/4" 1/4" 28546SS
(28-546SS)		 1/4" 1/4"
Stainless Steel Female Coupler

 Stainless Steel Industrial Female Plug
Part Number Thread Size Body Size Part Number Thread Size Body Size
28560SS
(28-560SS)		 1/4" 1/4" 28534SS
(28-534SS)		 1/4" 1/4"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
