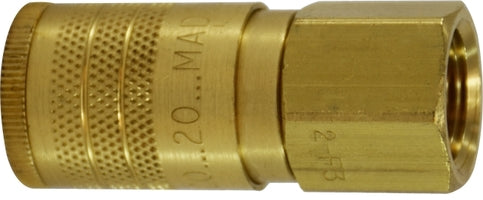

28584 (28-584) Midland ARO 210 Interchange Pneumatic Female Coupler - 1/4" Female Pipe - 1/4" Body Size - Brass

28584 by Midland | ARO 210 Interchange Pneumatic Female Coupler | 1/4" Female Pipe | 1/4" Body Size | Brass

Save $4.67 Save $4.67
$11.68
$11.68 - $11.68
$11.68
$7.01
$7.01 - $7.01
$7.01

Midland Industries
ARO 210 Interchange Pneumatic Coupler

Inventory @ Manufacturers Warehouse: 2075 Units
Specifications for Variant SKU: 28584 Midland
Shape (Orientation): Straight
Ends Configuration: 1/4in Female NPT, 1/4in Female Tru-Flate QD Interchange
Material(s): Brass
Seal Material(s): NBR
Features:
  • Couplers have brass bodies and brass valves, 6 steel locking balls, NBR seal, and stainless steel springs.
  • Plugs are steel with green blue zinc plating.
  • Couplers have a full opening tubular valve for maximum flow and a built-in sleeve guard to minimize accidental disconnect.
  • Maximum working pressure is 250 PSI.
Couplers Plugs
Brass Male Coupler

 Stainless Steel Male Plug
Part Number Thread Size Body Size Part Number Thread Size Body Size
28592
(28-592)		 1/8" 1/4" 28586
(28-586)		 1/8" 1/4"
28593
(28-593)		 1/4" 1/4" 28587
(28-587)		 1/4" 1/4"
28594
(28-594)		 3/8" 1/4" - - -
Brass Female Coupler

 Stainless Steel Female Plug
Part Number Thread Size Body Size Part Number Thread Size Body Size
28583
(28-583)		 1/8" 1/4" - - -
28584
(28-584)		 1/4" 1/4" 28578
(28-578)		 1/4" 1/4"
28585
(28-585)		 3/8" 1/4" - - -
Brass Hose Barb Coupler

 Stainless Steel Hose Barb Plug
Part Number Thread Size Body Size Part Number Thread Size Body Size
28601
(28-601)		 1/4" 1/4" 28595
(28-595)		 1/4" 1/4"
28603
(28-603)		 3/8" 1/4" 28597
(28-597)		 3/8" 1/4"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
