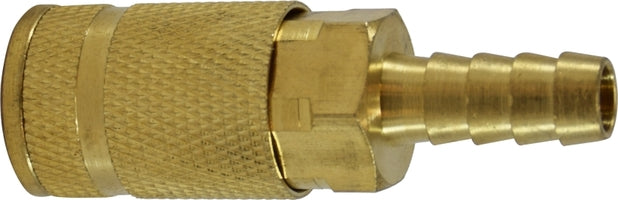

28601 (28-601) Midland ARO 210 Interchange Pneumatic Hose Barb Coupler - 1/4" Hose ID - 1/4" Body Size - Brass

28601 by Midland | ARO 210 Interchange | Pneumatic Hose Barb Coupler | 1/4" Hose ID | 1/4" Body Size | Brass

Save $5.11

$12.78

$12.78 - $12.78

$12.78

$7.67

$7.67 - $7.67

$7.67

Midland Industries
ARO 210 Interchange Pneumatic Coupler

Specifications for Variant SKU: 28601 Midland
Shape (Orientation):	Straight
Ends Configuration:	1/4in Hose Barb, 1/4in Female ARO 210 QD Interchange
Material(s):	Brass
Seal Material(s):	NBR

Features:
Couplers have brass bodies and brass valves, 6 steel locking balls, NBR seal, and stainless steel springs. Plugs are steel with green blue zinc plating. Couplers have a full opening tubular valve for maximum flow and a built-in sleeve guard to minimize accidental disconnect. Maximum working pressure is 250 PSI.

Couplers			Plugs
Brass Male Coupler			Stainless Steel Male Plug
Part Number	Thread Size	Body Size	Part Number	Thread Size	Body Size
28592 (28-592)	1/8"	1/4"	28586 (28-586)	1/8"	1/4"
28593 (28-593)	1/4"	1/4"	28587 (28-587)	1/4"	1/4"
28594 (28-594)	3/8"	1/4"	-	-	-

Brass Female Coupler			Stainless Steel Female Plug
Part Number	Thread Size	Body Size	Part Number	Thread Size	Body Size
28583 (28-583)	1/8"	1/4"	-	-	-
28584 (28-584)	1/4"	1/4"	28578 (28-578)	1/4"	1/4"
28585 (28-585)	3/8"	1/4"	-	-	-

Brass Hose Barb Coupler			Stainless Steel Hose Barb Plug
Part Number	Thread Size	Body Size	Part Number	Thread Size	Body Size
28601 (28-601)	1/4"	1/4"	28595 (28-595)	1/4"	1/4"
28603 (28-603)	3/8"	1/4"	28597 (28-597)	3/8"	1/4"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
