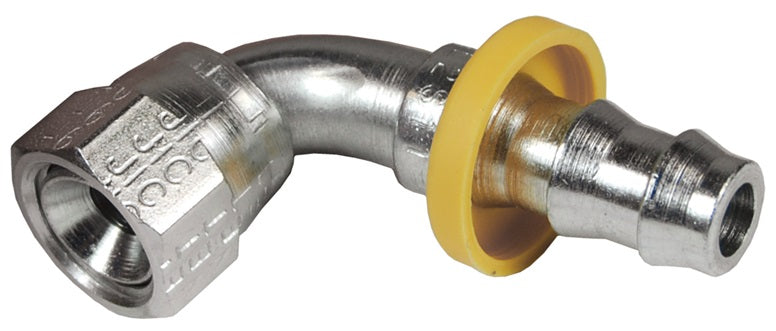

2891217C by Dixon Valve | Push-On Hose Barb Fitting | Female 37° JIC Swivel | 90° Elbow | 3/4" Tube OD | 3/4" Hose ID x 3/4" Female JIC | Plated Steel

Save $1.70

$55.02

$55.02 - $55.02

$55.02

$53.32

$53.32 - $53.32

$53.32

Dixon Valve
Push-On Hose Barb Fitting | 90° Elbow | Female 37° JIC / 45° SAE Swivel x Hose Barb

Intended for use with Lok-On (push-on style) hose only.

Quantity

Specifications for Variant SKU: 2891217C Dixon
Series:	289 Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Hose Barb, 3/4in Female JIC
Material(s):	Plated Steel

Features:
No hose clamps or ferrules are needed for installation.
Material:
Plated Steel Yellow Plastic Cap (Part numbers that end with CBC have Brass Caps.)
Specifications:
Temperature Range: -40 to +150°F Pressure Rating: 350 PSI
Safety Notes:
Dixon push-on fittings are intended for use with Lok-On (push-on style) hose only. Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
Installation:
Assembly Instructions: 1. Trim hose end with smooth square cut. 2. Lubricate either push-on fitting, hose or both. 3. Insert push-on fitting into hose until first barb is in hose. 4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until end of hose is covered by yellow plastic cap. Disassembly Instructions: 1. Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose. 2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.

Part Number	Previous Part Number	Hose I.D.	Tube O.D.	Female UNF
2890407C**	289-0407	1/4"	1/4"	7/16"-20
2890407CSAE*	289-0407SAE	1/4"	1/4"	7/16"-20
2890609C**	289-0609	3/8"	3/8"	9/16"-18
2890610CSAE*	289-0610SAE	3/8"	3/8"	5/8"-18
2890812C**	289-0812	1/2	1/2"	3/4"-16
2891217C**	289-1217	3/4"	3/4"	1-1/16"-12***

* Notch in nut for SAE identification
** JIC only, may substitute dual angle
*** UN Thread
