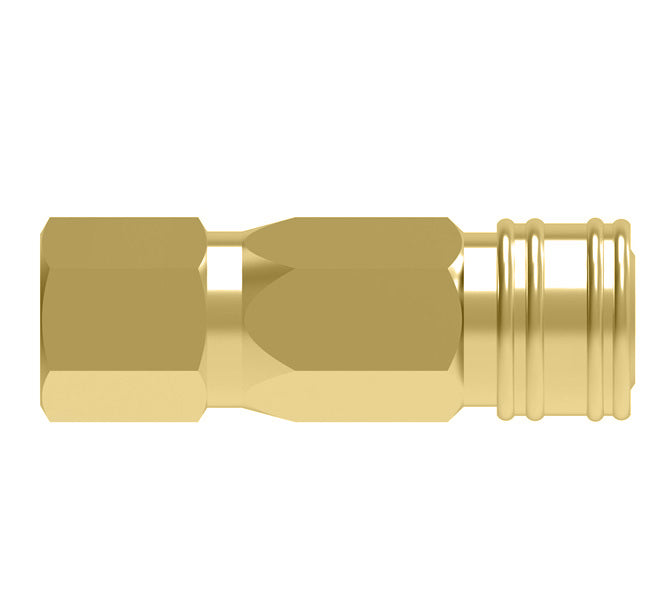

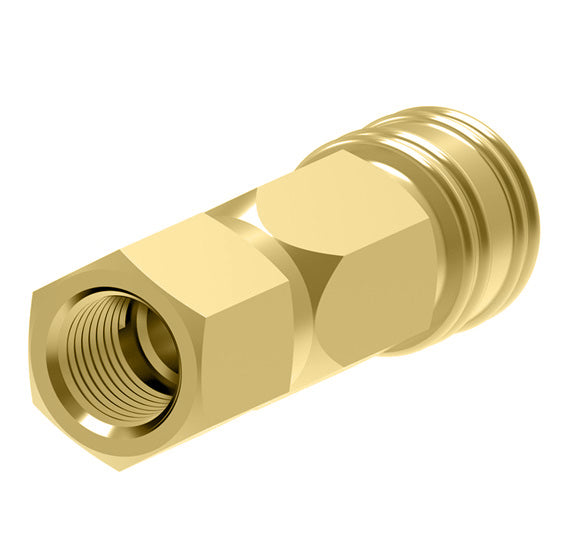

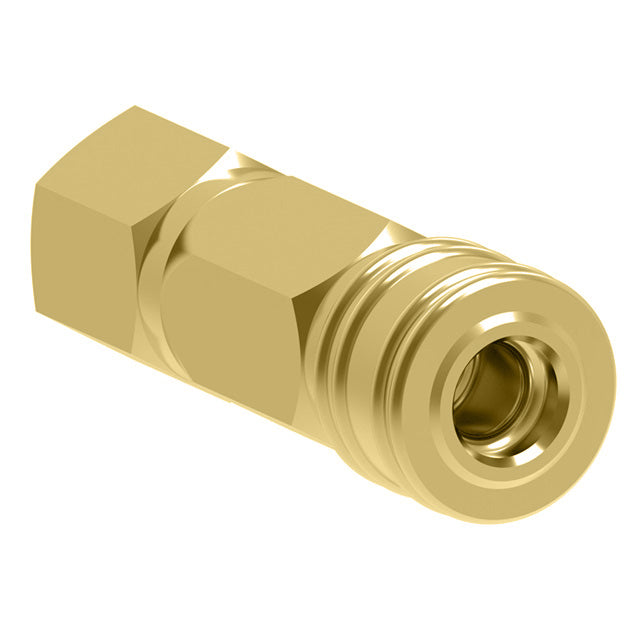

28S12F Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 180/280 Series | 1/8" Female NPTF x 1/8" Body Size | Socket | Buna-N Seal | Brass

28S12F Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 180/280 Series | 1/8" Female NPTF x 1/8" Body Size | Socket | Buna-N Seal | Brass

$26.13 - $26.13
$26.13
$26.13 - $26.13
$26.13

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 180/280 Series

Quick Disconnect for Pneumatic Applications.

Danfoss' 180/280 series miniature ball lock quick disconnect couplings are designed for use with compressed air, gases and liquids.

Series 180 an 280 sockets/females mate with all Series 180 plugs/males
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 28S12F Danfoss
Brand: Hansen
Series: 180/280 Series
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Series 180 sockets/females have a tire valve.
  • Series 280 sockets/females have a 1HK valve, which provides higher flow capacity.
  • Note: Interchange is proprietary to Danfoss.
Applications & Markets:
  • Recreation and Entertainment
  • Breathing Air
  • General Pneumatics
  • Pharmaceutical
  • Laboratory Uses
  • Medical
Materials:
  • Standard body material: Brass
  • Standard seal material: Buna-N
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
180 1/8" 48 bar 700 psi 192 bar 2,800 psi 71 lpm 2.5 scfm
280 1/8" 207 bar 3,000 psi 828 bar 1,200 psi 283 lpm 10 scfm
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
180/280 Series | Sockets
Part Number Coupling Type Body Size Port Size Thread Figure Dimensions
A B Hex
28S12F Socket/Female 1/8" 1/8" 1/8-27 Female NPTF 1 1.79"
(45.5mm)		 0.63"
(16.0mm)		 0.56"
(14.2mm)
180/280 Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Figure Dimensions
C D Hex
183 Plug/Male 1/8" 1/8" 1/8-27 Male NPTF 2 1.19"
(30.2mm)		 0.58"
(14.7mm)		 0.50"
(12.7mm)
