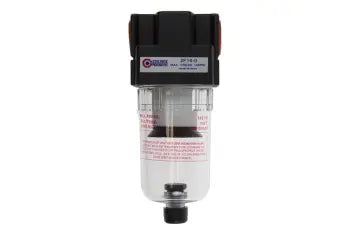

29-3F14-0 by Coilhose | 29 Series Filter | Manual | 1/4" Pipe Size | Aluminum

29-3F14-0 by Coilhose | 29 Series Filter | Manual | 1/4" Pipe Size | Aluminum

Save $5.37 Save $5.37
$48.35
$48.35 - $48.35
$48.35
$42.98
$42.98 - $42.98
$42.98
Coilhose Pneumatics - Filters, Regulators & Lubricators - 29 Series - Filters
Specifications for Variant SKU: 29-3F14-0 Coilhose
Material(s): Polycarbonate, Aluminum, Polypropylene
Overview:
  • The 29 Series of Filters - Regulators - Lubricators are made from lightweight aluminum bodies, which lend themselves to a wide variety of applications. These filters, regulators and lubricators are also "modular" in design, meaning the individual units can be removed from the line without disturbing the piping or other components. The 29 Series modular connecting system is designed to save space, making it ideal for OEM equipment as well as suitable for tight areas in shop or factory air lines and assembly areas.
Features:
  • Modular design
  • Metal bowl option
Warning:
  • Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.
Proof Pressure: 220 PSI Max Operating Pressure: 145 PSI
Ambient & Fluid Temp: 32° F to 140° F Nominal Filtration Rating: Standard: 40 Micron
Optional: 5, 20 Micron
Materials: Plastic Bowl: Polycarbonate
Metal Bowl: Aluminum
Body: Aluminum
Filter Element: Polypropylene
Bowl Guard*: Steel		 Max Operating Temp: Plastic Bowl: 140° F
Metal Bowl: 150° F

Pipe Size Max. FlowRate CFM BowlCapacity ManualModel Auto DrainModel
1/8" 26.5 1.1 oz 29-2F18-0 29-2F18-0D
1/8" 26.5 1.1 oz - 29-2F18-0DM
1/4" 26.5 1.1 oz 29-2F14-0 29-2F14-0D
1/4" 26.5 1.1 oz - 29-2F14-0DM
1/4" 53 5 oz 29-3F14-0 29-3F14-0D
1/4" 53 5 oz - 29-3F14-0DM
3/8" 53 5 oz 29-3F38-0 29-3F38-0D
3/8" 53 5 oz - 29-3F38-0DM
3/8" 140 16 oz 29-4F38-0 29-4F38-0D
3/8" 140 16 oz - 29-4F38-0DM
1/2" 140 16 oz 29-4F12-0 29-4F12-0D
1/2" 140 16 oz - 29-4F12-0DM
3/4" 247 16 oz 29-5F34-0 29-5F38-0D
3/4" 247 16 oz - 29-5F38-0DM
1" 247 16 oz 29-5F10-0 29-5F10-0D
1" 247 16 oz - 29-5F10-0DM
* No bowl guard on Series 2F
