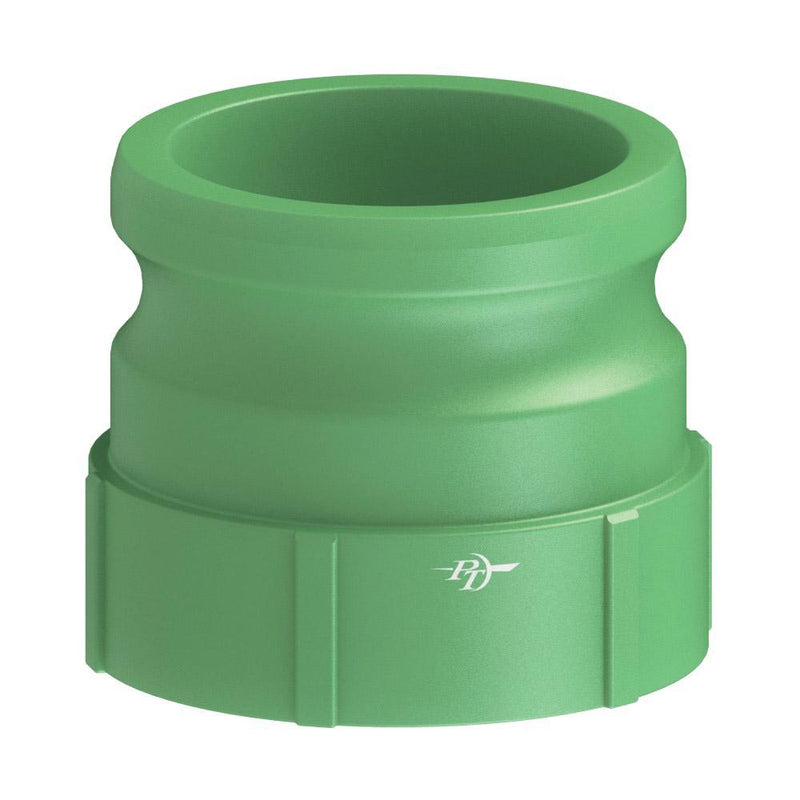

2900110 (10A) by PT-Coupling | Cam & Groove Adapter | Type A | 1" Adapter x 1" Female NPT | Nylon

2900110 (10A) by PT-Coupling | Cam & Groove Adapter | Type A | 1" Adapter x 1" Female NPT | Nylon

Save $4.63 Save $4.63
$12.48
$12.48 - $12.48
$12.48
$7.85
$7.85 - $7.85
$7.85

PT Coupling
Cam and Groove (Camlock) Adapter | Type A | Adapter x Female NPT Thread | Nylon

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 2900110 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: 1in Male Cam & Groove, 1in Female NPT
Material(s): Nylon
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • Glass-fiber reinforced for strength. Good abrasion, corrosion and chemical resistance.
  • Color Green.
  • Use with water, coolants, gasoline and varnish.
  • Made in the USA
Part Name Item # Adapter
Size		 Thread
(Female NPT)		 Overall
Length
(C)		 Inside
Diameter
(E)		 Across
Corners
(F)		 Chain Lug
Extension
(G)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*		 Weight
07A 2900107 3/4" 3/4" 1.62" 0.75" 1.49" - 0.97" 100 PSI 0.088 lbs.
10A 2900110 1" 1" 1.91" 0.88" 1.76" 0.34" 1.19" 100 PSI 0.114 lbs.
12A 2900112 1-1/4" 1-1/4" 2.16" 1.04" 2.19" 0.34" 1.44" 100 PSI 0.148 lbs.
15A 2900115 1-1/2" 1-1/2" 2.29" 1.35" 2.44" 0.33" 1.48" 100 PSI 0.209 lbs.
20A 2900120 2" 2" 2.54" 1.72" 2.92" 0.31" 1.75" 100 PSI 0.265 lbs.
30A 2900130 3" 3" 2.84" 2.80" 4.22" 0.44" 1.84" 50 PSI 0.495 lbs.

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
