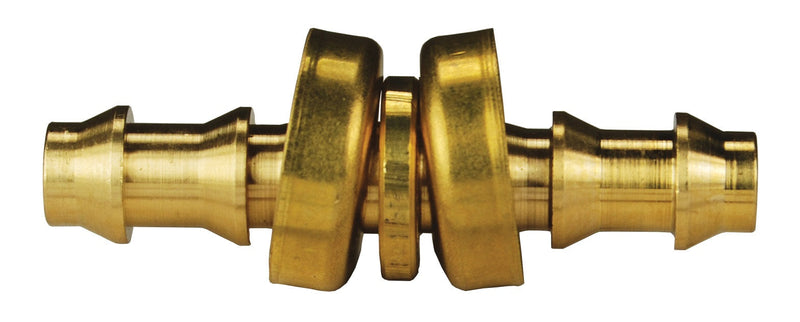

2960808CBC by Dixon Valve | Push-On Hose Mender / Splicer | with Brass Cap | 1/2" Hose ID x 1/2" Hose ID | Brass

2960808CBC by Dixon Valve | Push-On Hose Mender / Splicer | with Brass Cap | 1/2" Hose ID x 1/2" Hose ID | Brass

Save $2.83 Save $2.83
$7.08
$7.08 - $7.08
$7.08
$4.25
$4.25 - $4.25
$4.25

Dixon Valve
Push-on Hose Barb Fitting | Hose Mender / Splicer

Dixon push-on fittings are intended for use with Lok-On (push-on style) hose only.

No hose clamps or ferrules are needed.
Specifications for Variant SKU: 2960808CBC Dixon
Series: 296 Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Push-On Hose Barb, 1/2in Push-On Hose Barb, Some Ends Match
Material(s): Brass
Material:
  • Part Numbers Ending in CBC have Brass Caps
Specifications:
  • Temperature Range: -40°F to 150°F
  • Pressure Rating: 350 PSI
Safety Notes:
  • Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
Installation:
  • Assembly Instructions:
    • 1. Trim hose end with smooth square cut.
    • 2. Lubricate either push-on fitting, hose or both.
    • 3. Insert push-on fitting into hose until first barb is in hose.
    • 4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until end of hose is covered by yellow plastic cap.
  • Disassembly Instructions:
    • 1. Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose.
    • 2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.
Brass 303 Stainless Steel Hose I.D.
Part Number Previous
Part Number		 Part Number Previous
Part Number
2960404C BPM2 2960404SS SSPM2 1/4" x 1/4"
2960404CBC* - - - 1/4" x 1/4"
2960505C BPM25 - - 5/16" x 5/16"
2960606C BPM3 2960606SS SSPM3 3/8" x 3/8"
2960606CBC* - - - 3/8" x 3/8"
2960808C BPM4 2960808SS SSPM4 1/2" x 1/2"
2960808CBC* - - - 1/2" x 1/2"
2961010C BPM5 - - 5/8" x 5/8"
2961010CBC* - - - 5/8" x 5/8"
2961212C BPM6 - - 3/4" x 3/4"
2961212CBC* - - - 3/4" x 3/4"
2961616C BPM8 - - 1" x 1"

* Brass cap on CBC parts.
