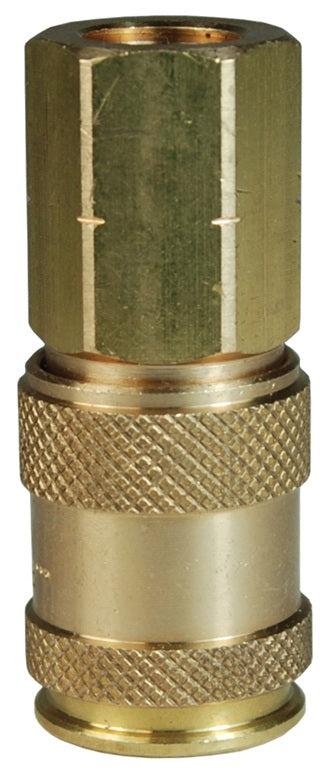

2CJBF3-B Dixon Valve Brass CJ-Series Quick Disconnect 1/4" European Interchange Pneumatic Coupler - 3/8"-19 Female BSPP

2CJBF3-B Dixon Valve Brass CJ-Series Quick Disconnect 1/4" European Interchange Pneumatic Coupler - 3/8"-19 Female BSPP

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Quick Disconnect Couplings - CJ-Series Pneumatic Couplings - CJ-Series European Interchange Coupler (Female Threads)
Specifications for Variant SKU: 2CJBF3-B Dixon
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Specifications:
  • Rated pressure for connected Brass Coupler & Brass Plug: 300 PSI (20 bar) Maximum Working and 7,200 PSI (500 bar) Burst
  • Rated pressure for connected Brass Coupler & Steel Plug: 300 PSI (20 bar) Maximum Working and 9,500 PSI (655 bar) Burst
  • Temperature Range: -40 deg. F to +250 deg. F (-40 deg. C to +121 deg. C)
Construction:
  • Machined components are manufactured using solid bar stock.
  • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
  • Nitrile (Buna-N) seals are standard.
Compatibility & Interchange Data:
  • European High-Flow Interchange
  • 1/4" interchanges with Coilhose Megaflow.CEJN 320,and Rectus 25KA/26KA
  • 3/8" interchanges with Rectus 27KA and Series 410
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
  • WARNING: Brass products contain a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
Part Number Size Female Thread Material Length Max. OD Hex Weight (Lbs.)
2CJF2-B 1/4" 1/4"-18 NPT Brass 2.32" 0.92" 3/4" 0.2600
2CJBF2-B 1/4" 1/4"-19 BSPP Brass 2.32" 0.92" 3/4" 0.2600
2CJF3-B 1/4" 3/8"-18 NPT Brass 2.32" 0.92" 3/4" 0.2700
2CJBF3-B 1/4" 3/8"-19 BSPP Brass 2.32" 0.92" 3/4" 0.2700
3CJF3-B 3/8" 3/8"-18 NPT Brass 2.54" 1.091" 15/16" 0.4600
3CJBF3-B 3/8" 3/8"-19 BSPP Brass 2.54" 1.09" 15/16" 0.4600
3CJF4-B 3/8" 1/2"-14 NPT Brass 2.68" 1.09" 15/16" 0.5100
3CJBF4-B 3/8" 1/2"-14 BSPP Brass 2.68" 1.09" 15/16" 0.5100
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
