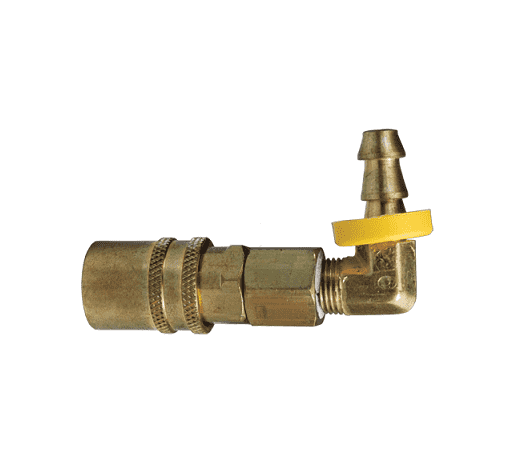

2CM9B3-B Dixon Brass CM-Series Quick Disconnect 1/4" Industrial Mold Interchange Valved Hydraulic Coupler - 90 deg. - Push-Loc Barb - 3/8" Hose ID

2CM9B3-B Dixon Valve Brass CM-Series Quick Disconnect 1/4" Industrial Mold Interchange Valved Hydraulic Coupler - 90 deg. - Push-Loc Barb - 3/8" Hose ID

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Quick Disconnect Couplings - CM-Series Hydraulic Couplings - CM-Series Industrial Mold Interchange Valved Coupler (90 deg. Push-Loc Barb)
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 2CM9B3-B Dixon
Shape (Orientation): 90 Degree
Material(s): Brass
Seal Material(s): Silicone
Specifications:
  • Rated pressure for connected Brass Valved Coupler and Brass Plug: 300 PSI (20 bar) Maximum Working and 6,000 PSI (400 bar) Burst
  • Rated pressure for connected Brass Valved Coupler and Steel Plug: 500 PSI (35 bar) Maximum Working and 6,100 PSI (400 bar) Burst
Construction:
  • Machined components are manufactured using solid bar stock.
  • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
Compatibility & Interchange Data:
  • Mold Coolant Interchange
  • Foster Series- FJT
  • Hansen Flo-Temp
  • Tomco MC-Series
  • Parker Moldmate
  • DME Jiffy-Tite
Seal Components:
  • Silicon gaskets and valve O-rings are standard, providing a temperature range of -90 deg. F to +400 deg. F (-68 deg. C to +205 deg. C).
Other Components:
Notes:
  • Maximum working and burst pressure is based on a coupled set, contact Dixon for pressure ratings.
  • WARNING: Brass products contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
Part Number Size Hose ID Material Length Max. OD Hex Weight (Lbs.)
2CM9B2-B 1/4" 1/4" brass 2.07" 0.69" N/A 0.1400
2CM9B3-B 1/4" 3/8" brass 2.17" 0.69" N/A 0.1700
3CM9B3-B 3/8" 3/8" brass 2.93" 0.95" N/A 0.3700
3CM9B4-B 3/8" 1/2" brass 2.98" 0.95" N/A 0.3900
