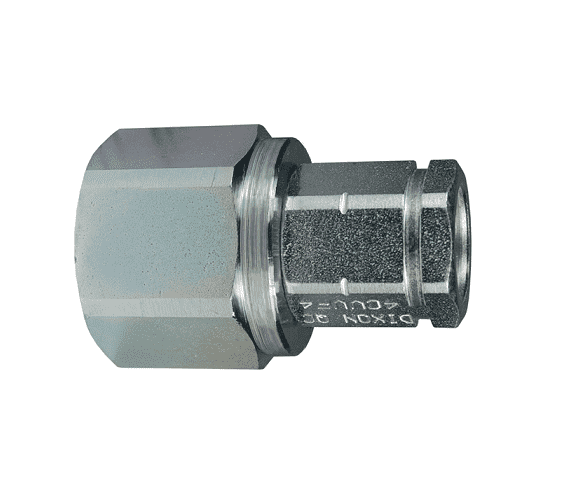

2CVVBF2 Dixon Steel CVV-Series Quick Disconnect 1/4" European Interchange Hydraulic Coupler - 1/4"-19 Female BSPP

2CVVBF2 Dixon Valve Steel CVV-Series Quick Disconnect 1/4" European Interchange Hydraulic Coupler - 1/4"-19 Female BSPP

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Quick Disconnect Couplings - CVV-Series Hydraulic Couplings - CVV-Series European Interchange Coupler (Female Threads)
Specifications for Variant SKU: 2CVVBF2 Dixon
Shape (Orientation): Straight
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Construction:
  • Machined components are manufactured using solid bar stock.
  • Steel retaining rings and springs maximize service life in rugged environments.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
  • Nitrile (Buna-N) seals are standard.
Compatibility & Interchange Data:
  • European Screw-Together Interchange
  • Inteva STG-Series
  • Faster CVV Series
  • DNP PVV3
  • Voswinkel Type-HS
  • Stucchi VD Series
Seal Components:
  • Nitrile (Buna-N) seals are standard, providing a temperature range of -13 deg. F to +257 deg. F (-25 deg. C to +125 deg. C).
  • Nipples have a PTFE Anti-Extrusion ring to prevent O-ring damage during dynamic impulse service.
Other Components:
Part Number Size Female Threads Material Length Max. OD Hex Max. Operating Pressure Burst Pressure Weight (Lbs.)
in. mm in. mm in. mm
2CVVF2 1/4" 1/4"-18 NPTF steel 2.33" 59.3mm 1.34" 34.0mm 3/4" 19mm 6500 PSI 26000 PSI 0.2600
2CVVBF2 1/4" 1/4"-19 BSPP steel 2.33" 59.3mm 1.34" 34.0mm 3/4" 19mm 6500 PSI 26000 PSI 0.2600
2CVVFM1415 1/4" M14X1.5 steel 2.33" 59.3mm 1.34" 34.0mm 3/4" 19mm 6500 PSI 26000 PSI 0.2900
3CVVF3 3/8" 3/8"-18 NPTF steel 2.41" 61.2mm 1.34" 34.0mm 7/8" 22mm 6500 PSI 26000 PSI 0.5000
3CVVBF3 3/8" 3/8"-19 BSPP steel 2.41" 61.2mm 1.34" 34.0mm 7/8" 22mm 6500 PSI 26000 PSI 0.5000
3CVVFM1615 3/8" M16X1.5 steel 2.41" 61.2mm 1.34" 34.0mm 7/8" 22mm 6500 PSI 26000 PSI 0.4800
4CVVF4 1/2" 1/2"-14 NPTF steel 2.66" 67.5mm 1.65" 41.8mm 1-1/16" 27mm 5800 PSI 23200 PSI 0.7500
4CVVOF4 1/2" 3/4"-16 ORB steel 2.66" 67.5mm 1.65" 41.8mm 1-1/16" 27mm 5800 PSI 23200 PSI 0.7500
4CVVBF4 1/2" 1/2"-14 BSPP steel 2.66" 67.5mm 1.65" 41.8mm 1-1/16" 27mm 5800 PSI 23200 PSI 0.7600
4CVVFM1815 1/2" M18X1.5 steel 2.66" 67.5mm 1.65" 41.8mm 1-1/16" 27mm 5800 PSI 23200 PSI 0.7800
4CVVOF5 1/2" 7/8"-14 ORB steel 2.66" 67.5mm 1.65" 41.8mm 1-1/16" 27mm 5800 PSI 23200 PSI 0.7800
4CVVFM2215 1/2" M22X1.5 steel 2.66" 67.5mm 1.65" 41.8mm 1-1/16" 27mm 5800 PSI 23200 PSI 0.7500
6CVVF6 3/4" 3/4"-14 NPTF steel 3.15" 80.0mm 1.89" 48.0mm 1-7/16" 36mm 5800 PSI 23200 PSI 1.2800
6CVVBF6 3/4" 3/4"-14 BSPP steel 3.15" 80.0mm 1.89" 48.0mm 1-7/16" 36mm 5800 PSI 23200 PSI 1.2800
6CVVFM2215 3/4" M22X1.5 steel 3.15" 80.0mm 1.89" 48.0mm 1-7/16" 36mm 5800 PSI 23200 PSI 1.2800
8CVVF8 1" 1"-11 1/2 NPTF steel 3.30" 83.9 2.35" 59.8mm 1-5/8" 41mm 4400 PSI 17600 PSI 1.7800
8CVVBF8 1" 1"-11 BSPP steel 3.30" 83.9 2.35" 59.8mm 1-5/8" 41mm 4400 PSI 17600 PSI 1.7800
10CVVF10 1-1/4" 1-1/4"-11 1/2 NPTF steel 5.59" 142.0 3.14" 79.8mm 2" 50mm 4400 PSI 17600 PSI 2.6400
10CVVBF10 1-1/4" 1-1/4"-11 BSPP steel 5.59" 142.0 3.14" 79.8mm 2" 50mm 4400 PSI 17600 PSI 2.6400
