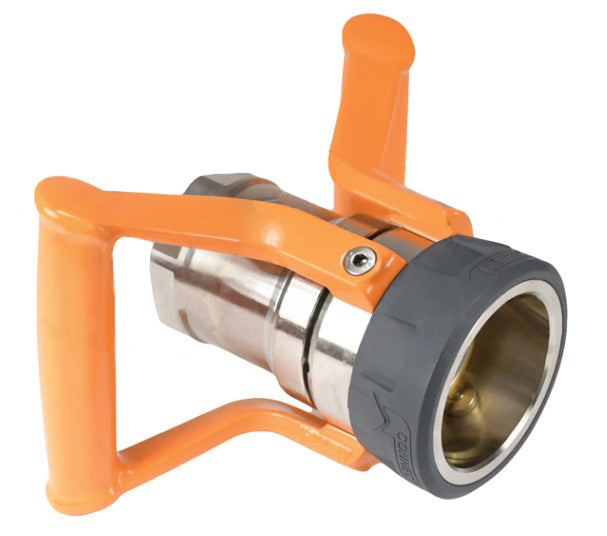

2DGC200SS by Dixon Valve | MannTek Dry Disconnect Gas Coupling 2.0 Design | 2" Female NPT x 71mm Body Size | 316 Stainless Steel

2DGC200SS by Dixon Valve | MannTek Dry Disconnect Gas Coupling 2.0 Design | 2" Female NPT x 71mm Body Size | 316 Stainless Steel

Save $296.06 Save $296.06
$2,664.53
$2,664.53 - $2,664.53
$2,664.53
$2,368.47
$2,368.47 - $2,368.47
$2,368.47

Dixon Valve
MannTek Dry Disconnect Gas Coupling 2.0 Design

Designed for loading and discharge of bobtails or intermediate bulk delivery trucks to and from rail cars.

Primary application is in the handling of LPG - Propane and Butane.

New 2.0 design based on handling and ergonomics.

40% less force needed to couple units together.

45% improved flow capacity.
Specifications for Variant SKU: 2DGC200SS Dixon
Brand: MannTek
Shape (Orientation): Straight
Material(s): 316 Stainless Steel
Seal Material(s): FKM
Features:
  • Integrated body, handle, and bumper for supreme performance.
  • Bumper with guidance covering the roll axles and arrow for easier alignment.
  • Shorter loading times and reduced energy consumption.
Applications:
  • Primary application is in the handling of LPG - Propane and Butane.
Specifications:
  • Working pressure: 360 PSI at ambient temperature 70°F (21°C)
  • Can be coupled to a tank unit with pressures up to 225 PSI at ambient temperature 70°F (21°C), if pressure is higher, equip couplings with pressure relief valves
316 Stainless Steel
Part Number		 End Type
2DGC200SS 2" Female NPT x 71mm Body Size
2DGC300SS 3" Female NPT x 119mm Body Size
