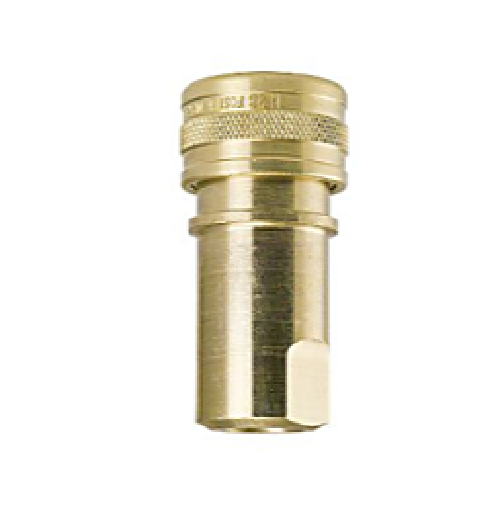

2DSF2-BY Breco by Foster | DS Series | Two Way Shut-Off | Quick Disconnect | 1/4" Socket x 1/4" Female NPTF Thread | Viton Seal | Straight | Brass

2DSF2-BY Breco by Foster | DS Series | Two Way Shut-Off | Quick Disconnect | 1/4" Socket x 1/4" Female NPTF Thread | Viton Seal | Straight | Brass

Save $14.78 Save $14.78
$36.95
$36.95 - $36.95
$36.95
$22.17
$22.17 - $22.17
$22.17

Foster Quick Disconnects - FHK & DS Series 1/4" Two Way Shut-Off, Plugs and Sockets - Breco
Specifications for Variant SKU: 2DSF2-BY ZSi-Foster
Brand: Breco
Series: DS Series
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Viton/FKM
Interchange:
  • Compatible with ISO 7241-1, Series B.
Applications:
  • FHK Series sockets incorporate valves in both socket and plug halves to prevent fluid loss when the socket is disconnected. These sockets are normally referred to as "hydraulic couplings", but they are used extensively with other media where objectionable. The FHK Series sockets are available in ROHS compliant steel and brass.
Features:
  • Type: FHK, Two-Way Shutoff , Both socket and plug are sealed at disconnect.
  • Operation: Manual - Socket sleeve must be manually retracted to connect and disconnect.
  • Seal Compound: Standard seals are Buna-N.
  • Interchangeability: Standard, most widely used, industrial interchange design. Within each series, only sockets and plugs of the same size will couple to gether. Compatible with ISO 7241-1, Series B.
  • Ordering information: FHK Series couplings are available in ROHS compliant plated steel, brass, and 303 Stainless as standard. Brass couplings have double O-Ring seals (excluding 1/8") and stainless locking balls. Standard seals are Buna-N (Nitrile). Consult factory for optional seals.
  • Vacuum Service: 27" Hg. maximum Rated pressures as defined by ANSI/B93.2-1986 based on 4:1 Safety Factor and non-shock service.
  • NOTE: Only Sockets & Plugs with same prefix digits connect together. Example: 25FS & 25MPB
    • 1 ISO B, Hardened plugs and sleeves constructed from solid bar stock ensures long service life and maximum resistance to damage from hydraulic and mechanical shock.
    • 2 High flow capacity
    • 3 Foster's conical valve with its 360 deg. metal to metal valve stop maintains valve alignment and ensures that poppets open fully every time.
    • 4 Captive valve seal ensures "bubble tight" poppet sealing since seal is positively captured by the metal poppet to minimize seal washout or damage from high fluid velocity.
    • 5 Ball locking mechanism ensures reliable connections every time. Many ball bearings distribute the load while providing alignment and excellent swiveling action to reduce hose torque and prolong hose life.
    • 6 Broad range of metals and seal materials allow the use of most fluids.
Female Coupler
Part Number		 Brand Male Plug
Part Number		 Socket
Dust Plug		 Thread Description
H2S Foster K2S K2B K2S/S H2DP 1/4" Steel
2DSF2-S Breco DS2F2-S - 1/4" Steel
2DSF2-SY Breco - - 1/4" 303 Stainless Steel with Viton Seal
H2S-101 Foster - - 1/4" Steel w/Viton Seal
H2S-103 Foster - - 1/4" Steel w/EPDM Seal
H2S-104 Foster - - 1/4" Steel w/Silicone Seal
H2B Foster K2S K2B K2S/S H2DP 1/4" Brass
2DSF2-B Breco DS2F2-B BH2-66M 1/4" Brass
H2B-101 Foster - - 1/4" Brass, w/Viton Seal
2DSF2-BY Breco DS2F2-BY - 1/4" Brass with Viton Seal
H2B-102 Foster - - 1/4" Brass, w/Neoprene Seal
H2B-103 Foster - - 1/4" Brass, w/EPDM Seal
H2BLV Foster - - 1/4" Brass, Less Valve
H2S/S Foster K2S K2B K2S/S H2DP 1/4" 303 Stainless Steel
2DSF2-SS Breco DS2F2-SS - 1/4" 303 Stainless Steel
H2S/S-101 Foster - - 1/4" 303 Stainless, w/Viton Seal
H2S/S-103 Foster - - 1/4" 303 Stainless, w/EPDM Seal
H2S/S-104 Foster - - 1/4" 303 Stainless, w/Silicone Seal
H2S/SLV Foster - - 1/4" 303 Stainless, Less Valve
BLH2S Foster - - 1/4" Steel Ball Lock
BLH2B Foster - - 1/4" Brass Ball Lock
2DSF2-SS Breco DS2F2-SS - 1/4" 303 Stainless Steel
BLH2S/S Foster - - 1/4" 303 Stainless Ball Lock
2DSF2-B-SL Breco - - 1/4" Brass with Sleeve Lock
H2S6 Foster K2S6 - 9/16-18* Steel
BLH2S6 Foster - - 9/16-18* Steel Ball Lock
* SAE straight thread O-ring seal boss
