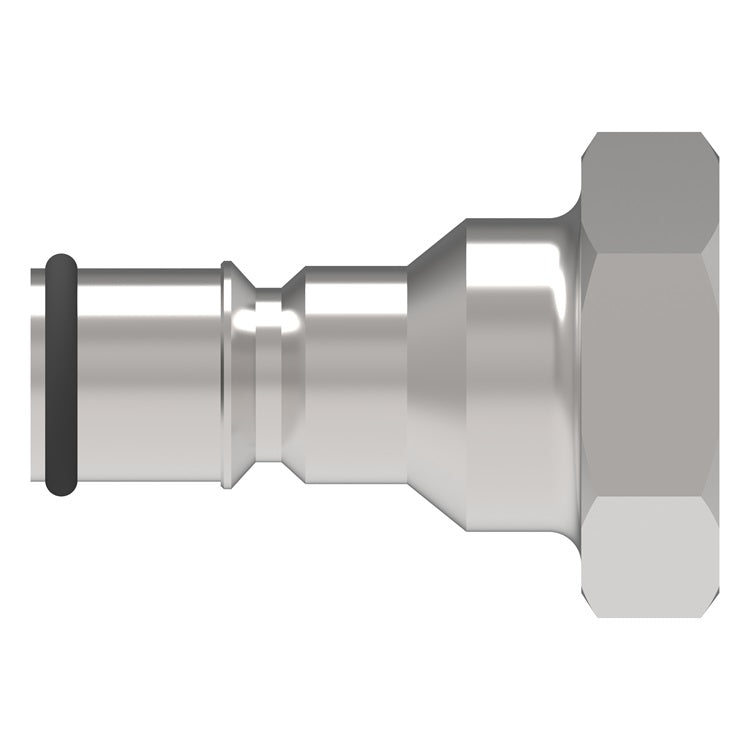

2KLS3 Hansen® by Danfoss | Food & Beverage Quick Disconnect Coupling | 2HKGL Series | 7/16-20 Female UNF x 1/4" Body Size | Plug for Liquid | NBR Seal | Stainless Steel
2KLS3 Hansen® by Danfoss | Food & Beverage Quick Disconnect Coupling | 2HKGL Series | 7/16-20 Female UNF x 1/4" Body Size | Plug for Liquid | NBR Seal | Stainless Steel
2KLS3 Hansen® by Danfoss | Food & Beverage Quick Disconnect Coupling | 2HKGL Series | 7/16-20 Female UNF x 1/4" Body Size | Plug for Liquid | NBR Seal | Stainless Steel
2KLS3 Hansen® by Danfoss | Food & Beverage Quick Disconnect Coupling | 2HKGL Series | 7/16-20 Female UNF x 1/4" Body Size | Plug for Liquid | NBR Seal | Stainless Steel

2KLS3 Hansen® by Danfoss | Food & Beverage Quick Disconnect Coupling | 2HKGL Series | 7/16-20 Female UNF x 1/4" Body Size | Plug for Liquid | NBR Seal | Stainless Steel

$130.42 - $130.42
$130.42
$130.42 - $130.42
$130.42

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 2HKGL Series

Quick Disconnect for Food & Beverage Applications.

Danfoss Hansen 2HKGL series is a specific coupling made for liquid or gas transfer in various field, such as chemical, food and beverage, or aerospace.
Specifications for Variant SKU: 2KLS3 Danfoss
Brand: Hansen
Series: 2HKGL Series
Shape (Orientation): Straight
Material(s): Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • The coupling is a push/pull and the material used is stainless steel.
  • The socket part has 3 locking balls.
  • This series was made based on the 2HKIL/2HKIG Danfoss Hansen series.
Applications & Markets:
  • Food and beverage
  • Military
  • Aerospace
  • Chemical
Materials:
  • Standard body material: Stainless Steel
Body Size Max. Operating Pressure Min. Burst Pressure Nominal Flow Diameter Rated Flow Air Inclusion Fluid Loss
1/4" 110 bar 1595 psi 438 bar 6352 psi 5.9 mm 8,3 lpm 2,2 gpm 2,2 cc. max 1 cc. max
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
2HKGL Series | Sockets
Part Number Coupling Type For Use with: Body Size End Connection Figure Dimensions
A B Hex
2HGRB Socket/Female Gas 1/4" 1/4" Hose Barb 3 2.16"
(54,8mm)		 1.65"
(41,9mm)		 -
2HLRB Socket/Female Liquid 1/4" 1/4" Hose Barb 3 2.16"
(54,8mm)		 1.65"
(41,9mm)		 -

2HGLLRA720 Socket/Female Gas 1/4" 7/16-20 Male UNF 4 2.10"
(53,3mm)		 1.43"
(36,3mm)		 -
2HLLLRA720 Socket/Female Liquid 1/4" 7/16-20 Male UNF 4 2.10"
(53,3mm)		 1.43"
(36,3mm)		 -

2HGBNB Socket/Female Gas 1/4" 1/4" Hose Barb 5 2.73"
(69,3mm)		 1.00"
(25,4mm)		 -
2HLBNB Socket/Female Liquid 1/4" 1/4" Hose Barb 5 1.64"
(41,6mm)		 0.83"
(21,0mm)		 -

2HGDNB Socket/Female Gas 1/4" 3/8" Hose Barb 5 2.73"
(69,3mm)		 1.00"
(25,4mm)		 -
2HLDNB Socket/Female Liquid 1/4" 3/8" Hose Barb 5 1.64"
(41,6mm)		 0.83"
(21,0mm)		 -

2HG720 Socket/Female Gas 1/4" 7/16-20 Male UNF 1 2.16"
(54,8mm)		 1.65"
(41,91mm)		 0.81"
(20,57mm)
2HL720 Socket/Female Liquid 1/4" 7/16-20 Male UNF 1 2.80"
(71,1mm)		 1.00"
(25,4mm)		 0.81"
(20,57mm)

2HG15 Socket/Female Gas 1/4" 1/4" Male NPT 1 2.73"
(69,3mm)		 1.00"
(25,4mm)		 0.81"
(20,57mm)
2HL15 Socket/Female Liquid 1/4" 1/4" Male NPT 1 1.60"
(40,6mm)		 0.83"
(21,08mm)		 0.81"
(20,57mm)

2HG20 Socket/Female Gas 1/4" 3/8" Male NPT 1 2.73"
(69,3mm)		 1.00"
(25,4mm)		 0.81"
(20,57mm)
2HL20 Socket/Female Liquid 1/4" 3/8" Male NPT 1 2.80"
(71,1mm)		 1.00"
(25,4mm)		 0.81"
(20,57mm)

2HG16 Socket/Female Gas 1/4" 1/4" Male NPT 2 2.73"
(69,3mm)		 1.00"
(25,4mm)		 0.81"
(20,57mm)
2HL16 Socket/Female Liquid 1/4" 1/4" Male NPT 2 2.16"
(54,8mm)		 1.09"
(27,68mm)		 0.81"
(20,57mm)
Figure 1
Figure 2
Figure 3
2HKGL Series | Plugs
Part Number Coupling Type For Use with: Body Size End Connection Figure Dimensions
C D Hex
2KGF16 Plug/Male Gas 1/4" 1/4" Female NPT 8 1.98"
(50,29mm)		 1.00"
(25,4mm)		 0.88"
(22,35mm)
2KLF16 Plug/Male Liquid 1/4" 1/4" Female NPT 8 1.82"
(46,22mm)		 0.90"
(22,8mm)		 0.88"
(22,35mm)

2KLF720 Plug/Male Liquid 1/4" 7/16-20 Female UNF 8 1.60"
(40,64mm)		 0.90"
(22,8mm)		 0.88"
(22,35mm)

2KGF15 Plug/Male Gas 1/4" 1/4" Female NPT 7 1.17"
(29,71mm)		 1.00"
(25,4mm)		 0.88"
(22,35mm)
2KLF15 Plug/Male Liquid 1/4" 1/4" Female NPT 7 2.00"
(50,8mm)		 0.95"
(24,1mm)		 0.88"
(22,35mm)

2KGF20 Plug/Male Gas 1/4" 3/8" Male NPT 7 1.97"
(50,03mm)		 0.95"
(24,1mm)		 0.88"
(22,35mm)
2KLF20 Plug/Male Liquid 1/4" 3/8" Male NPT 7 1.98"
(50,29mm)		 1.00"
(25,4mm)		 0.88"
(22,35mm)

2KGC Plug/Male Gas 1/4" 11/16-18 Female UNF 6 1.46"
(37,08mm)		 0.80"
(20,3mm)		 0.81"
(20,57mm)
2KLC Plug/Male Liquid 1/4" 11/16-18 Female UNF 6 1.46"
(37,08mm)		 1.00"
(25,4mm)		 0.88"
(22,35mm)

2KLS3 Plug/Male Liquid 1/4" 7/16-20 Female UNF 6 1.45"
(36,83mm)		 0,75"
(19,5mm)		 0.86"
(21,84mm)
