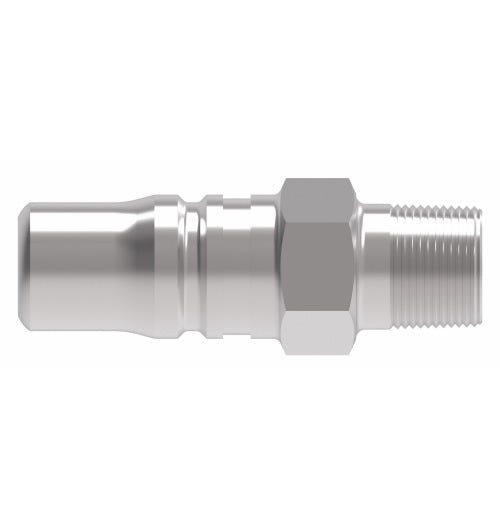

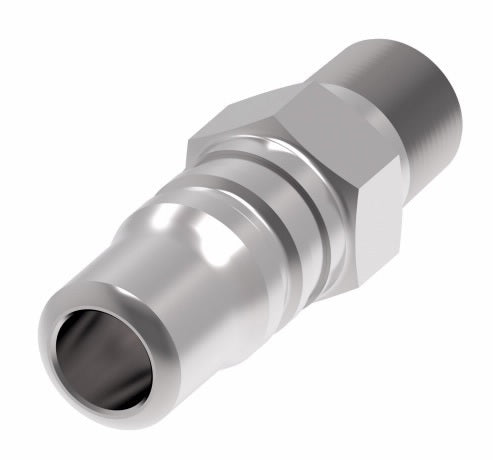

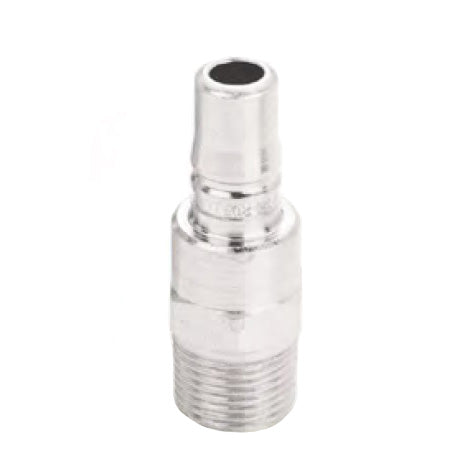

2L10 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | 1/8" Male NPTF x 1/4" Body Size | Plug | Steel
2L10 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | 1/8" Male NPTF x 1/4" Body Size | Plug | Steel
2L10 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | 1/8" Male NPTF x 1/4" Body Size | Plug | Steel
2L10 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | 1/8" Male NPTF x 1/4" Body Size | Plug | Steel

2L10 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | 1/8" Male NPTF x 1/4" Body Size | Plug | Steel

$56.29 - $56.29
$56.29
$56.29 - $56.29
$56.29

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 2RL Series

Quick Disconnect for Pneumatic Applications.

Danfoss' 2RL/3RL ring lock series quick disconnect pneumatic couplings have a unique interchange which Danfoss designed for use with compressed air.
Specifications for Variant SKU: 2L10 Danfoss
Brand: Hansen
Series: 2RL Series
Shape (Orientation): Straight
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • High Flow capacity.
  • Push to connect with a ring lock sleeve.
  • Ring lock design prevents accidental disconnection.
  • To disconnect rotate sleeve 20 degrees.
Applications & Markets:
  • Shipyards
  • General Pneumatics
  • Mining
  • Marine
Materials:
  • Standard body material: Trivalent Plated Steel
  • Standard seal material: Buna-N
Series Coupling Size Max. Operating Pressure Min. Burst Pressure Rated Flow
2RL 1/4" 20 bar 300 psi 80 bar 1,200 psi 1,350 lpm 48 scfm
3RL 3/8" 20 bar 300 psi 80 bar 1,200 psi 2,250 lpm 80 scfm
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
2RL Series | Socket
Part Number Coupling Type Body Size Port Size Thread Figure Dimensions
A B Hex
2R10 Socket/Female 1/4" 1/8" 1/8-27 Male NPTF 1 2.01"
(51.1mm)		 1.06"
(26.9mm)		 0.88"
(22.4mm)
2R15 Socket/Female 1/4" 1/4" 1/4-18 Male NPTF 1 2.16"
(54.9mm)		 1.06"
(26.9mm)		 0.88"
(22.4mm)
2R20 Socket/Female 1/4" 3/8" 3/8-18 Male NPTF 1 2.16"
(54.9mm)		 1.06"
(26.9mm)		 0.88"
(22.4mm)
2R25 Socket/Female 1/4" 1/2" 1/2-14 Male NPTF 1 2.35"
(59.7mm)		 1.06"
(26.9mm)		 0.88"
(22.4mm)
2RL Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Figure Dimensions
C D Hex
2L10 Plug/Male 1/4" 1/8" 1/8-27 Male NPTF 2 1.51"
(38.4mm)		 0.58"
(14.7mm)		 0.50"
(12.7mm)
2L15 Plug/Male 1/4" 1/4" 1/4-18 Male NPTF 2 1.66"
(42.2mm)		 0.65"
(16.5mm)		 0.56"
(14.2mm)
2L20 Plug/Male 1/4" 3/8" 3/8-18 Male NPTF 2 2.04"
(51.8mm)		 0.79"
(20.1mm)		 0.69"
(17.5mm)
2L20G* Plug/Male 1/4" 3/8" 3/8-18 Male NPTF 2 2.64"
(67.1mm)		 0.77"
(19.6mm)		 0.69"
(17.5mm)
2L25 Plug/Male 1/4" 1/2" 1/2-14 Male NPTF 2 2.31"
(58.7mm)		 1.01"
(25.7mm)		 0.88"
(22.4mm)

* With Bleeder Ball Check - Reduces Hose Whip
