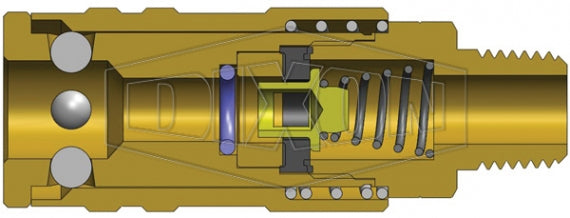

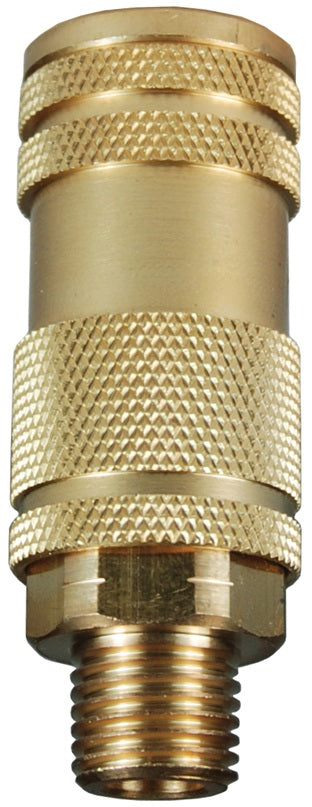

2LM2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | L-Series | 1/4" Male NPT x 1/4" Lincoln Interchange | Socket | Nitrile Seal | Brass

Save $0.83

$12.42

$12.42 - $12.42

$12.42

$11.59

$11.59 - $11.59

$11.59

Dixon Valve & Coupling
Pneumatic Coupling: L-Series Lincoln Interchange Coupler (Male Threads)

Quantity

Specifications for Variant SKU: 2LM2-B Dixon
Series:	L-Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female Lincoln QD Interchange, 1/4in Male NPTF
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Compatibility & Interchange:	Lincoln Long-Nose Automotive Interchange Parker 70-Series, Tomco Series-1110, Coilhose Type-17
Construction:	Machined components are manufactured using solid bar stock. Stainless steel springs. Carbon steel balls and retaining rings. Nitrile (Nitrile Rubber) seals are standard. Providing a temperature range of -40°F to 250°F (-40°C to 121°C). Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Safety Notes:	It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

L-Series \| Lincoln Interchange Coupler (Male Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex	Max. Operating Pressure	Burst Pressure
2LM2-B	Socket/Female	1/4"	1/4" - 18" Male NPT	Brass	2.62" (66.5mm)	0.90" (22.9mm)	3/4"	300 PSI (21 bar)	5000 PSI (345 bar)

L-Series \| Lincoln Interchange Plug (Male Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Maximum OD	Hex	Max. Operating Pressure	Burst Pressure
L2M2	Plug/Male	1/4"	1/4" - 18 Male NPT	Steel	2.25" (57.2mm)	0.65" (16.5mm)	9/16"	300 PSI (21 bar)	5000 PSI (345 bar)
