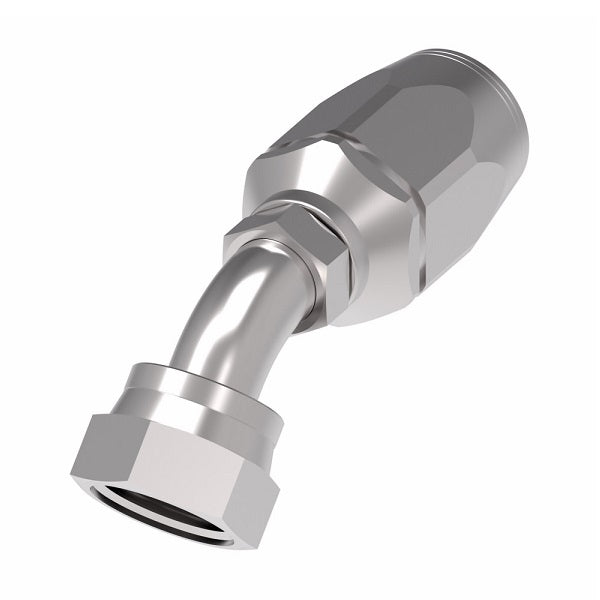

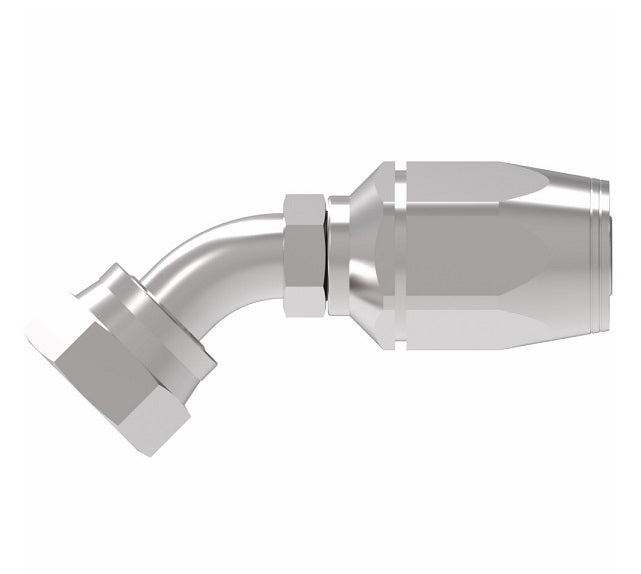

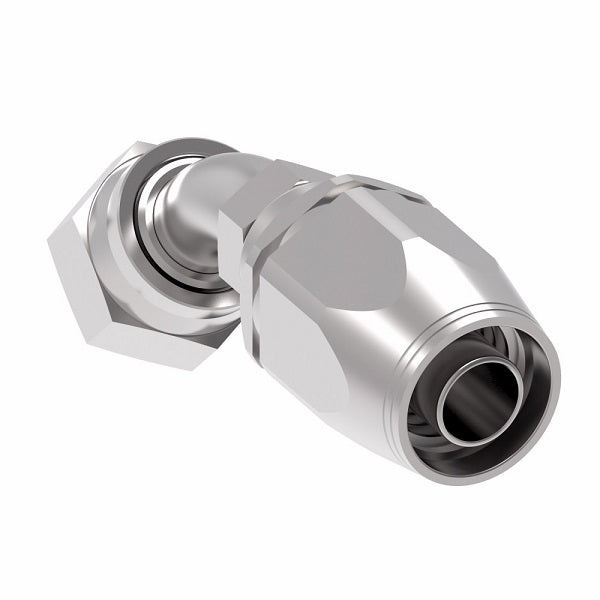

2RA12FRA12 Weatherhead by Danfoss | Female ORS Swivel 45° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel
2RA12FRA12 Weatherhead by Danfoss | Female ORS Swivel 45° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel
2RA12FRA12 Weatherhead by Danfoss | Female ORS Swivel 45° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel
2RA12FRA12 Weatherhead by Danfoss | Female ORS Swivel 45° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel

2RA12FRA12 Weatherhead by Danfoss | Female ORS Swivel 45° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel

$143.76 - $143.76
$143.76
$143.76 - $143.76
$143.76

Weatherhead by Danfoss
Field Attachable Fitting for 2 Wire Braided Hose - 2R Series - Female O-Ring Face Seal Swivel - 45° Elbow
Specifications for Variant SKU: 2RA12FRA12 Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Female O-Ring Face Seal, 3/4in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H280 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash H
2RA8FRA8 FJ8733-0808S 2RA8 13/16-16 -08 3.30" 1.79" 0.38" 0.59"
2RA12FRA12 FJ8733-1212S 2RA12 1-3/16-12 -12 4.21" 2.34" 0.61" 0.83"
2RA16FRA16 FJ8733-1616S 2RA16 1-7/16-12 -16 4.91" 2.86" 0.81" 0.94"
