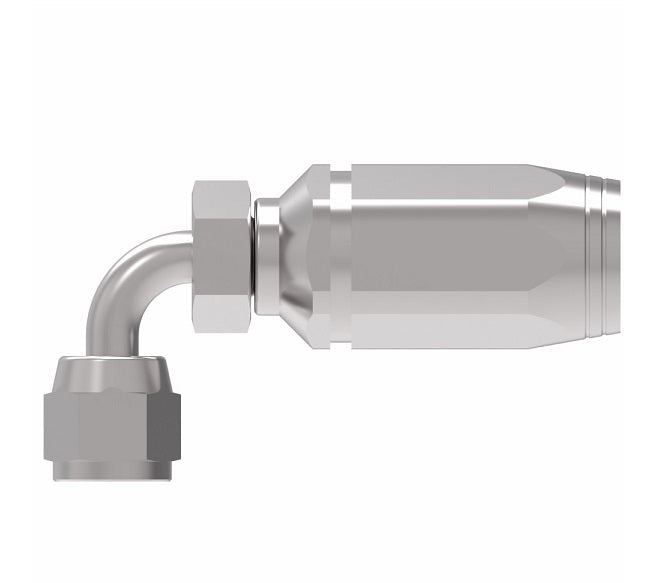

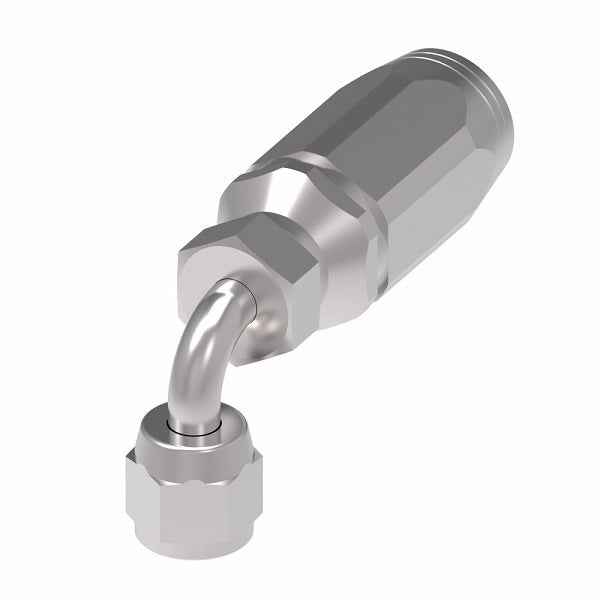

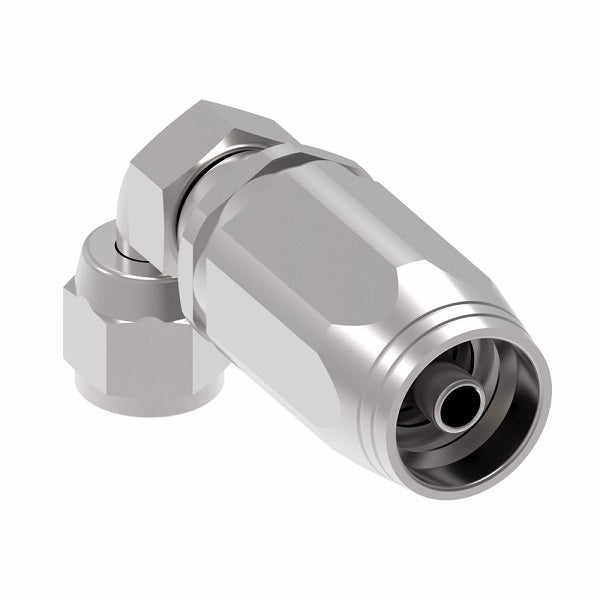

2RA16FJB16 Weatherhead by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel
2RA16FJB16 Weatherhead by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel
2RA16FJB16 Weatherhead by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel
2RA16FJB16 Weatherhead by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel

2RA16FJB16 Weatherhead by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel

$149.36 - $149.36
$149.36
$149.36 - $149.36
$149.36

Weatherhead by Danfoss
Field Attachable Fitting for 2 Wire Braided Hose - 2R Series - Female 37° JIC Swivel Short Drop - 90° Elbow
Specifications for Variant SKU: 2RA16FJB16 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1in Female JIC, 1in Reusable Hose End
Material(s): Steel
Special Properties: Short Drop, Swivel
Compatible with the following Series: H280 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash H
2RA4FJB4 185264-4S 2RA4 7/16-20 -04 2.40" 1.23" 0.17" 0.68"
2RA6FJB6 185264-6S 2RA6 9/16-18 -06 2.72" 1.38" 0.31" 0.85"
2RA8FJB8 185264-8S 2RA8 3/4-16 -08 3.02" 1.52" 0.39" 1.09"
2RA12FJB12 185264-12S 2RA12 1-1/16-12 -12 4.11" 2.24" 0.61" 1.82"
2RA16FJB16 185264-16S 2RA16 1-5/16-12 -16 4.84" 2.79" 0.82" 2.39"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
