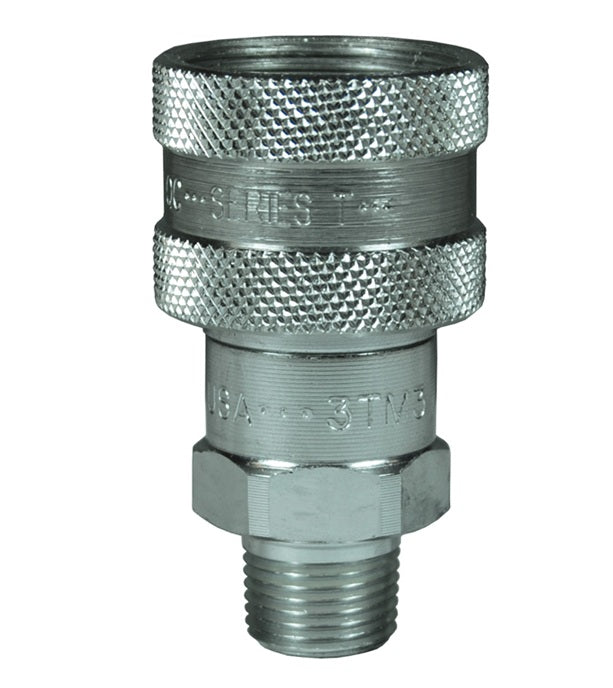

2TM2 by Dixon Valve | Hydraulic Quick Disconnect Coupling | T-Series | 1/4" Male NPTF x 1/4" 10K Threaded Ball | Socket | Nitrile Seal | Steel

Save $1.19

$17.91

$17.91 - $17.91

$17.91

$16.72

$16.72 - $16.72

$16.72

Dixon Valve & Coupling
Hydraulic Coupling: T-Series 10K Threaded Ball Coupler (Male Threads)

Designed for high pressure applications including hydraulic rams and pumps where low flow and pressures up to 10,000 PSI are encountered.

Quantity

Specifications for Variant SKU: 2TM2 Dixon
Series:	T-Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female T-Series QD Interchange, 1/4in Male NPTF
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Applications:	Hydraulic tools, jacks, hand pumps, fire rescue tools, crimping, bolting, and power units.
Compatibility & Interchange:	High Pressure Screw-Together Interchange Parker 3000-Series Enerpac C604 Interchangeable to ISO 14540

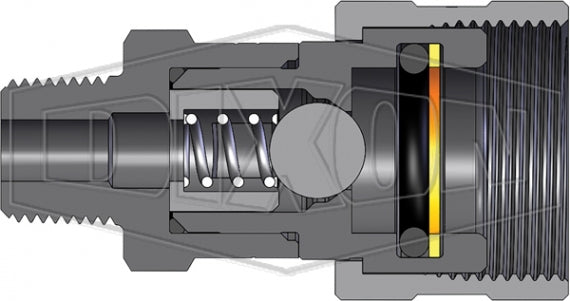

Construction:	Machined components are manufactured using solid steel or 316 stainless steel bar stock. Chrome steel ball valve is mechanically seated to improve pressure sealing performance. Steel plugs are machined from solid high strength steel bar stock. Steel componentry is plated using ROHS-compliant trivalent chrome.
Seal Components:	Nitrile O-ring with TPC-ET back-up ring is standard, providing a temperature range of -40°F to 250°F (-40°C to 121°C).
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

T-Series \| 10K Threaded (Connected) Rated Pressure Chart
Body Size	Steel Ball Coupler/Plug		316 SS Ball Coupler/Plug		Steel Poppet Coupler/Plug		316 SS Poppet Coupler/Plug		Valve Style	Air Inclusion	Fluid Loss	Flow ΔP = 60 PSI
Body Size	Max. Working	Burst	Max. Working	Burst	Max. Working	Burst	Max. Working	Burst	Valve Style	Air Inclusion	Fluid Loss	Flow ΔP = 60 PSI
1/4"	10,000 PSI (700 Bar)	34,300 PSI (2,350 Bar)	-	-	-	-	-	-	Ball	0.97	0.56	3.8 GPM
3/8"	10,000 PSI (700 Bar)	30,000 PSI (2,050 Bar)	10,000 PSI (700 Bar)	30,900 PSI (2,100 Bar)	10,000 PSI (700 Bar)	36,800 PSI (2,500 Bar)	10,000 PSI (700 Bar)	36,500 PSI (2,500 Bar)	Ball	2.04	0.98	4.2 GPM
3/8"	10,000 PSI (700 Bar)	30,000 PSI (2,050 Bar)	10,000 PSI (700 Bar)	30,900 PSI (2,100 Bar)	10,000 PSI (700 Bar)	36,800 PSI (2,500 Bar)	10,000 PSI (700 Bar)	36,500 PSI (2,500 Bar)	Poppet	1.56	0.77	6.0 GPM

T-Series \| 10K Threaded Ball Coupler (Male Threads)

Part Number	Coupling Type	Body Size	Port Size	Material	Length	Max. OD	Hex
2TM2	Socket/Male	1/4"	1/4" - 18 Male NPTF	Steel	2.16" (54.9mm)	1.13" (28.60mm)	13/16"
3TM3	Socket/Male	3/8"	3/8" - 18 Male NPTF	Steel	2.59" (65.8mm)	1.37" (34.70mm)	1"
3TM3-SS	Socket/Male	3/8"	3/8" - 18 Male NPTF	316 Stainless	2.59" (65.8mm)	1.37" (34.70mm)	1"

T-Series \| 10K Threaded Ball Plug (Female Threads)

Part Number	Coupling Type	Body Size	Port Size	Material	Length	Max. OD	Hex
T2F2	Plug/Male	1/4"	1/4" - 18 Male NPTF	Steel	1.29" (32.9mm)	1.07" (27.2mm)	1-1/16"
T3F3	Plug/Male	3/8"	3/8" - 18 Male NPT	Steel	1.56" (39.7mm)	1.35" (34.3mm)	1-1/4"
T3F3-SS	Plug/Male	3/8"	3/8" - 18 Male NPT	316 Stainless	1.56" (39.7mm)	1.35" (34.3mm)	1-1/4"
