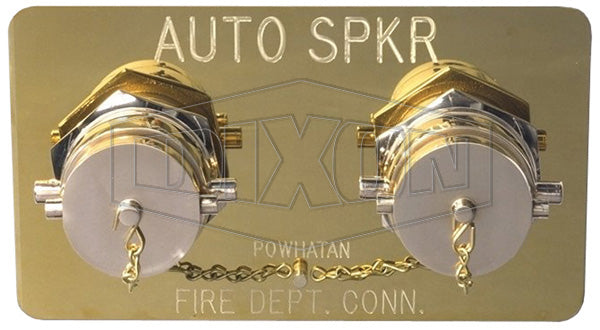

2WCA6025F-SP-P Dixon StandPipe Polished Cast Brass Double Clapper Concealed Type Siamese Assembly - 6" Female NPT Outlet x Two 2-1/2" Female NST(NH) Inlets

2WCA6025F-SP-P Dixon StandPipe Polished Cast Brass Double Clapper Concealed Type Siamese Assembly - 6" Female NPT Outlet x Two 2-1/2" Female NST(NH) Inlets

Save $1,570.69 Save $1,570.69
$3,926.73
$3,926.73 - $3,926.73
$3,926.73
$2,356.04
$2,356.04 - $2,356.04
$2,356.04

Dixon Fire Fittings
Double Clapper Concealed Type Siamese Assembly
Specifications for Variant SKU: 2WCA6025F-SP-P Dixon
Shape (Orientation): Straight
Ends Configuration: 6in Female NPT, 2-1/2in Female NST
Material(s): Brass
Special Properties: Polished
Features:
  • Fully reversible with a perpendicular trunnion allowing one body to be installed for top and bottom connections.
  • Complete unit consists of:
    (1) 4025REV90 or 4030REV90 or 90CREV6025
    (1) 24-385 plate
    (2) 23-270 double female connections
    (2) 17-127 plugs with chains
  • Maximum operating pressure: 250 PSI
Part Number Finish Branding Outlet Inlets (Two) Weight
(Lbs.)
2WCA4025F-P Polished AutoSprinkler 4" Female NPT 2-1/2" Female NST(NH) 30.6400
2WCA4025F-SP-P Polished StandPipe 4" Female NPT 2-1/2" Female NST(NH) 31.8500
2WCA4025F-C Polished Chrome Plated AutoSprinkler 4" Female NPT 2-1/2" Female NST(NH) 29.7650
2WCA4025F-SP-C Polished Chrome Plated StandPipe 4" Female NPT 2-1/2" Female NST(NH) 29.3300
2WCA4030F-P Polished AutoSprinkler 4" Female NPT 3" Female NST(NH) 24.5010
2WCA6025F-P Polished AutoSprinkler 6" Female NPT 2-1/2" Female NST(NH) 34.6400
2WCA6025F-SP-P Polished StandPipe 6" Female NPT 2-1/2" Female NST(NH) 35.8500
2WCA6025F-C Polished Chrome Plated AutoSprinkler 6" Female NPT 2-1/2" Female NST(NH) 33.7650
2WCA6025F-SP-C Polished Chrome Plated StandPipe 6" Female NPT 2-1/2" Female NST(NH) 33.3300
