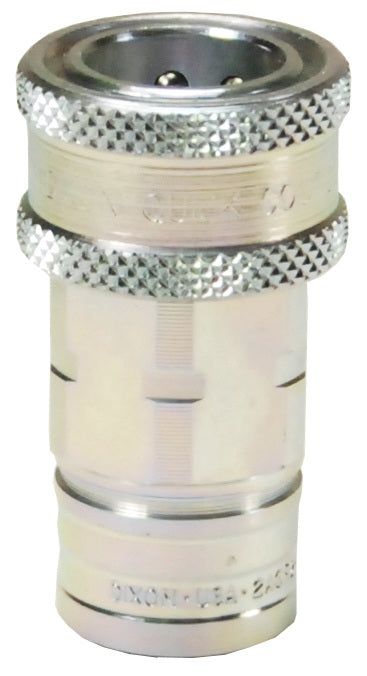

2AGF2 by Dixon Valve | Hydraulic Quick Disconnect Coupling | AG-Series | 1/4" Female NPTF x 1/4" Agricultural Interchange Ball Valve | Socket | Nitrile Seal | Steel

Save $0.90

$13.50

$13.50 - $13.50

$13.50

$12.60

$12.60 - $12.60

$12.60

Dixon Valve & Coupling
Hydraulic Coupling: AG-Series Agricultural Interchange Ball Valve Coupler (Female Threads)

Used on construction equipment, farm implements and most other mobile equipment.

Quantity

Specifications for Variant SKU: 2AGF2 Dixon
Series:	AG-Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female ISO-5675 Farm (Agricultural) QD Interchange, 1/4in Female NPTF
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Compatibility & Interchange:	Pioneer Agricultural Interchange Parker/Pioneer 4000 Series Safeway S20
Construction:	Machined components are manufactured using solid bar stock. Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life. Steel componentry is plated using ROHS Compliant Trivalent Chrome. Steel coupler sleeves are hardened to resist deformation and maximize service life. Ball valve and poppet valve options available.
Seal Components:	Nitrile seals are standard, providing a temperature range of -40°F to 250°F (-40°C to 121°C). Couplers have a PTFE Anti-Extrusion ring.
Features:	Poppet style shut-off valve.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

AG-Series \| Agricultural Interchange Ball Valve Coupler (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex	Max. Operating Pressure	Burst Pressure
2AGF2	Socket/Female	1/4"	1/4" - 18 Female NPTF	Steel	2.06" (52.3mm)	1.12" (28.4mm)	7/8"	4000 PSI (275 Bar)	24400 PSI (1700 bar)
3AGF3	Socket/Female	3/8"	3/8" - 18 Female NPTF	Steel	2.31" (58.6mm)	1.42" (36.0mm)	7/8"	4000 PSI (275 Bar)	25000 PSI (1700 bar)
4AGF4	Socket/Female	1/2"	1/2" - 14 Female NPTF	Steel	2.62" (66.5mm)	1.50" (38.1mm)	1-1/16"	4000 PSI (275 Bar)	16500 PSI (1100 bar)
4AGBF4	Socket/Female	1/2"	1/2" - 14 Female BSPP	Steel	2.62" (66.5mm)	1.50" (38.1mm)	1-1/16"	4000 PSI (275 Bar)	16500 PSI (1100 bar)
4AGOF4	Socket/Female	1/2"	3/4" - 16 Female ORB	Steel	2.62" (66.5mm)	1.50" (38.1mm)	1-1/16"	4000 PSI (275 Bar)	16500 PSI (1100 bar)
4AGOF5	Socket/Female	1/2"	7/8" - 14 Female ORB	Steel	2.66" (67.5mm)	1.50" (38.1mm)	1-3/32"	4000 PSI (275 Bar)	16500 PSI (1100 bar)
4AGF6	Socket/Female	1/2"	3/4" - 14 Female NPTF	Steel	2.64" (67.0mm)	1.50" (38.1mm)	1-5/16"	4000 PSI (275 Bar)	16500 PSI (1100 bar)
6AGF6	Socket/Female	3/4"	3/4" - 14 Female NPTF	Steel	3.23" (82.0mm)	1.88" (47.7mm)	1-5/16"	3000 PSI (200 Bar)	15800 PSI (1050 bar)
8AGF8	Socket/Female	1"	1" - 11-1/2 Female NPTF	Steel	3.79" (96.2mm)	2.12" (53.8mm)	1-5/8"	3000 PSI (200 Bar)	13500 PSI (900 bar)

AG-Series \| Agricultural Interchange Ball Valve Plug (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex	Max. Operating Pressure	Burst Pressure
AG2F2	Plug/Male	1/4"	1/4" - 18 Female NPTF	Steel	1.42" (36.0mm)	0.84" (21.3mm)	3/4"	4000 PSI (275 bar)	24400 PSI (1700 bar)
AG3F3	Plug/Male	3/8"	3/8" - 18 Female NPTF	Steel	1.61" (40.8mm)	1.05" (26.6mm)	15/16"	4000 PSI (275 bar)	25000 PSI (1700 bar)
AG4F4	Plug/Male	1/2"	1/2" - 14 Female NPTF	Steel	1.95" (49.5mm)	1.21" (30.7mm)	1-1/16"	4000 PSI (275 bar)	16500 PSI (1100 bar)
AG4BF4	Plug/Male	1/2"	1/2" - 14 Female BSPP	Steel	1.95" (49.5mm)	1.21" (30.7mm)	1-1/16"	4000 PSI (275 bar)	16500 PSI (1100 bar)
AG4OF4	Plug/Male	1/2"	3/4" - 16 Female ORB	Steel	2.10" (53.3mm)	1.26" (30.7mm)	1-1/16""	4000 PSI (275 bar)	16500 PSI (1100 bar)
AG4OF5	Plug/Male	1/2"	7/8" - 14 Female ORB	Steel	2.10" (53.3mm)	1.26" (32.0mm)	1-1/4"	4000 PSI (275 bar)	16500 PSI (1100 bar)
AG4F6	Plug/Male	1/2"	3/4" - 14 Female NPTF	Steel	2.30" (58.4mm)	1.32" (33.5mm)	1-3/16"	4000 PSI (275 bar)	16500 PSI (1100 bar)
AG6F6	Plug/Male	3/4"	3/4" - 14 Female NPTF	Steel	2.30" (58.4mm)	1.51" (38.3mm)	1-3/8"	3000 PSI (200 bar)	15800 PSI (1050 bar)
AG8F8	Plug/Male	1"	1" - 11-1/2 Female NPTF	Steel	2.57" (65.2mm)	1.74" (44.7mm)	1-5/8"	3000 PSI (200 bar)	13500 PSI (900 bar)
