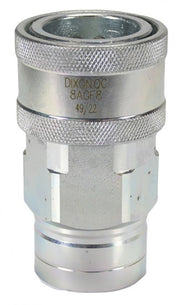

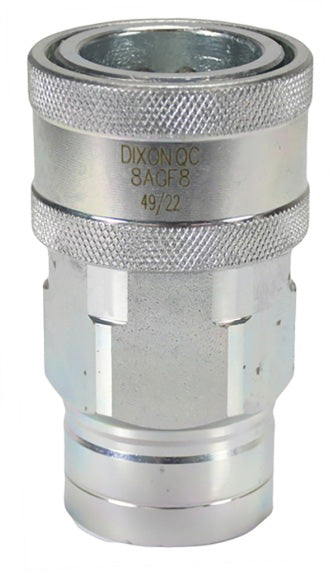

8AGF8 by Dixon Valve | Hydraulic Quick Disconnect Coupling | AG-Series | 1" Female NPTF x 1" Agricultural Interchange Ball Valve | Socket | Nitrile Seal | Steel
8AGF8 by Dixon Valve | Hydraulic Quick Disconnect Coupling | AG-Series | 1" Female NPTF x 1" Agricultural Interchange Ball Valve | Socket | Nitrile Seal | Steel
8AGF8 by Dixon Valve | Hydraulic Quick Disconnect Coupling | AG-Series | 1" Female NPTF x 1" Agricultural Interchange Ball Valve | Socket | Nitrile Seal | Steel

8AGF8 by Dixon Valve | Hydraulic Quick Disconnect Coupling | AG-Series | 1" Female NPTF x 1" Agricultural Interchange Ball Valve | Socket | Nitrile Seal | Steel

Save $30.30 Save $30.30
$75.75
$75.75 - $75.75
$75.75
$45.45
$45.45 - $45.45
$45.45

Dixon Valve & Coupling
Hydraulic Coupling: AG-Series Agricultural Interchange Ball Valve Coupler (Female Threads)

Used on construction equipment, farm implements and most other mobile equipment.
Specifications for Variant SKU: 8AGF8 Dixon
Series: AG-Series
Shape (Orientation): Straight
Ends Configuration: 1in Female ISO-5675 Farm (Agricultural) QD Interchange, 1in Female NPTF
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Compatibility & Interchange:
  • Pioneer Agricultural Interchange
  • Parker/Pioneer 4000 Series
  • Safeway S20

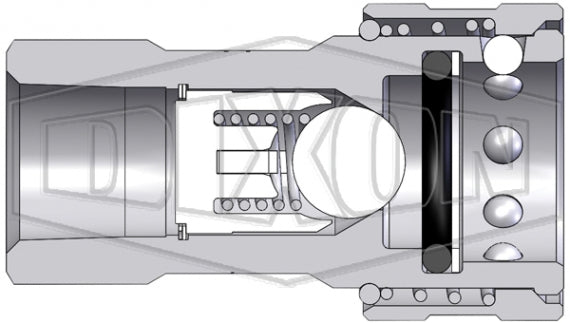

Construction:
  • Machined components are manufactured using solid bar stock.
  • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
  • Steel coupler sleeves are hardened to resist deformation and maximize service life.
  • Ball valve and poppet valve options available.
Seal Components:
  • Nitrile seals are standard, providing a temperature range of -40°F to 250°F (-40°C to 121°C).
  • Couplers have a PTFE Anti-Extrusion ring.
Features:
  • Poppet style shut-off valve.
Additional Information:
AG-Series | Agricultural Interchange Ball Valve Coupler (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Max.
Operating
Pressure		 Burst
Pressure
2AGF2 Socket/Female 1/4" 1/4" - 18 Female NPTF Steel 2.06"
(52.3mm)		 1.12"
(28.4mm)		 7/8" 4000 PSI
(275 Bar)		 24400 PSI
(1700 bar)
3AGF3 Socket/Female 3/8" 3/8" - 18 Female NPTF Steel 2.31"
(58.6mm)		 1.42"
(36.0mm)		 7/8" 4000 PSI
(275 Bar)		 25000 PSI
(1700 bar)
4AGF4 Socket/Female 1/2" 1/2" - 14 Female NPTF Steel 2.62"
(66.5mm)		 1.50"
(38.1mm)		 1-1/16" 4000 PSI
(275 Bar)		 16500 PSI
(1100 bar)
4AGBF4 Socket/Female 1/2" 1/2" - 14 Female BSPP Steel 2.62"
(66.5mm)		 1.50"
(38.1mm)		 1-1/16" 4000 PSI
(275 Bar)		 16500 PSI
(1100 bar)
4AGOF4 Socket/Female 1/2" 3/4" - 16 Female ORB Steel 2.62"
(66.5mm)		 1.50"
(38.1mm)		 1-1/16" 4000 PSI
(275 Bar)		 16500 PSI
(1100 bar)
4AGOF5 Socket/Female 1/2" 7/8" - 14 Female ORB Steel 2.66"
(67.5mm)		 1.50"
(38.1mm)		 1-3/32" 4000 PSI
(275 Bar)		 16500 PSI
(1100 bar)
4AGF6 Socket/Female 1/2" 3/4" - 14 Female NPTF Steel 2.64"
(67.0mm)		 1.50"
(38.1mm)		 1-5/16" 4000 PSI
(275 Bar)		 16500 PSI
(1100 bar)
6AGF6 Socket/Female 3/4" 3/4" - 14 Female NPTF Steel 3.23"
(82.0mm)		 1.88"
(47.7mm)		 1-5/16" 3000 PSI
(200 Bar)		 15800 PSI
(1050 bar)
8AGF8 Socket/Female 1" 1" - 11-1/2 Female NPTF Steel 3.79"
(96.2mm)		 2.12"
(53.8mm)		 1-5/8" 3000 PSI
(200 Bar)		 13500 PSI
(900 bar)
AG-Series | Agricultural Interchange Ball Valve Plug (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Max.
Operating
Pressure		 Burst
Pressure
AG2F2 Plug/Male 1/4" 1/4" - 18 Female NPTF Steel 1.42"
(36.0mm)		 0.84"
(21.3mm)		 3/4" 4000 PSI
(275 bar)		 24400 PSI
(1700 bar)
AG3F3 Plug/Male 3/8" 3/8" - 18 Female NPTF Steel 1.61"
(40.8mm)		 1.05"
(26.6mm)		 15/16" 4000 PSI
(275 bar)		 25000 PSI
(1700 bar)
AG4F4 Plug/Male 1/2" 1/2" - 14 Female NPTF Steel 1.95"
(49.5mm)		 1.21"
(30.7mm)		 1-1/16" 4000 PSI
(275 bar)		 16500 PSI
(1100 bar)
AG4BF4 Plug/Male 1/2" 1/2" - 14 Female BSPP Steel 1.95"
(49.5mm)		 1.21"
(30.7mm)		 1-1/16" 4000 PSI
(275 bar)		 16500 PSI
(1100 bar)
AG4OF4 Plug/Male 1/2" 3/4" - 16 Female ORB Steel 2.10"
(53.3mm)		 1.26"
(30.7mm)		 1-1/16"" 4000 PSI
(275 bar)		 16500 PSI
(1100 bar)
AG4OF5 Plug/Male 1/2" 7/8" - 14 Female ORB Steel 2.10"
(53.3mm)		 1.26"
(32.0mm)		 1-1/4" 4000 PSI
(275 bar)		 16500 PSI
(1100 bar)
AG4F6 Plug/Male 1/2" 3/4" - 14 Female NPTF Steel 2.30"
(58.4mm)		 1.32"
(33.5mm)		 1-3/16" 4000 PSI
(275 bar)		 16500 PSI
(1100 bar)
AG6F6 Plug/Male 3/4" 3/4" - 14 Female NPTF Steel 2.30"
(58.4mm)		 1.51"
(38.3mm)		 1-3/8" 3000 PSI
(200 bar)		 15800 PSI
(1050 bar)
AG8F8 Plug/Male 1" 1" - 11-1/2 Female NPTF Steel 2.57"
(65.2mm)		 1.74"
(44.7mm)		 1-5/8" 3000 PSI
(200 bar)		 13500 PSI
(900 bar)
