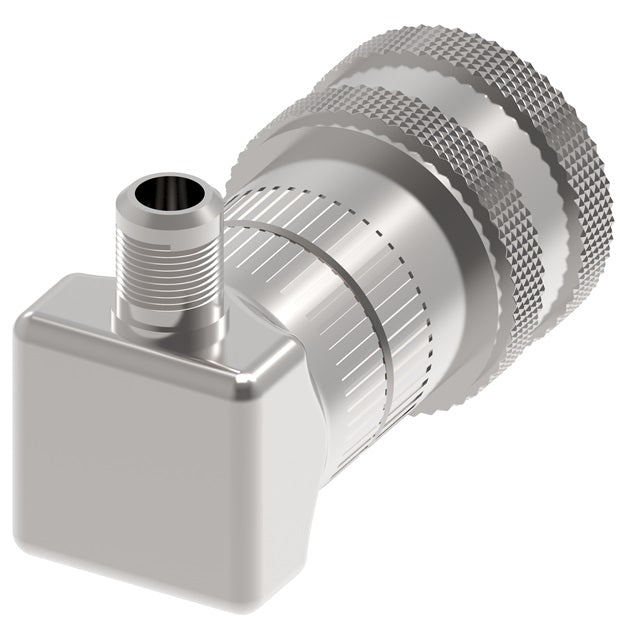

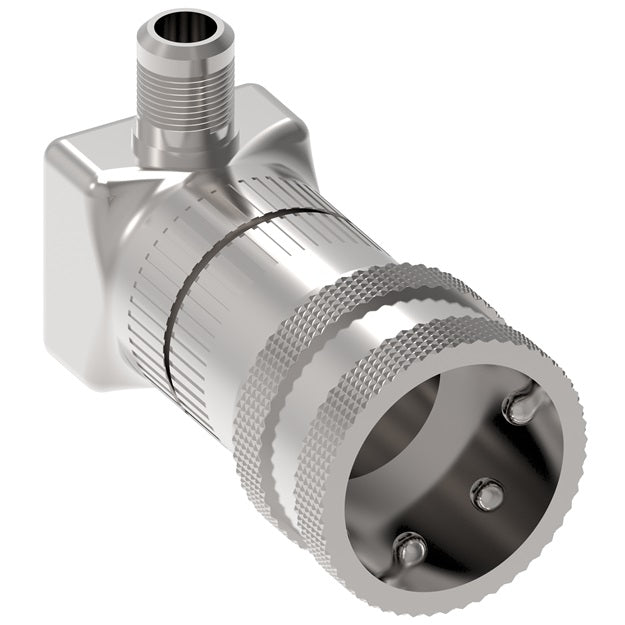

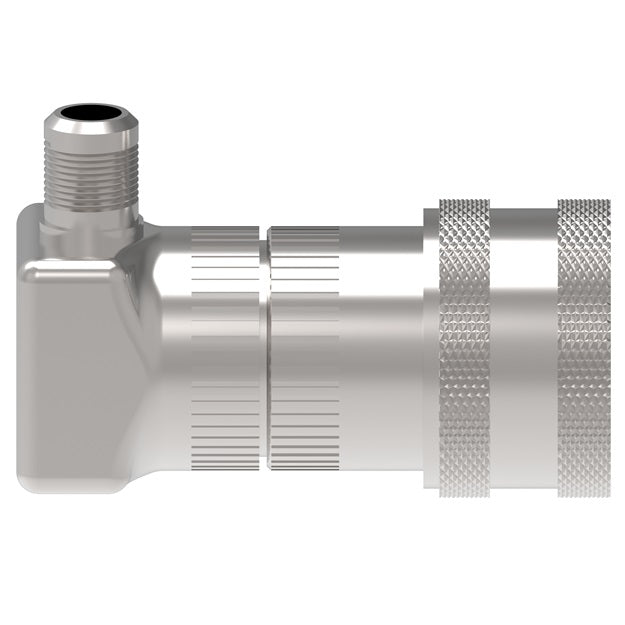

2HLLLRA720 Hansen® by Danfoss | Food & Beverage Quick Disconnect Coupling | 2HKGL Series | 90° Elbow | 7/16-20 Male UNF x 1/4" Body Size | Socket for Liquid | NBR Seal | Stainless Steel

2HLLLRA720 Hansen® by Danfoss | Food & Beverage Quick Disconnect Coupling | 2HKGL Series | 90° Elbow | 7/16-20 Male UNF x 1/4" Body Size | Socket for Liquid | NBR Seal | Stainless Steel

$54.93 - $54.93
$54.93
$54.93 - $54.93
$54.93

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 2HKGL Series

Quick Disconnect for Food & Beverage Applications.

Danfoss Hansen 2HKGL series is a specific coupling made for liquid or gas transfer in various field, such as chemical, food and beverage, or aerospace.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 2HLLLRA720 Danfoss
Brand: Hansen
Series: 2HKGL Series
Shape (Orientation): Straight
Material(s): Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • The coupling is a push/pull and the material used is stainless steel.
  • The socket part has 3 locking balls.
  • This series was made based on the 2HKIL/2HKIG Danfoss Hansen series.
Applications & Markets:
  • Food and beverage
  • Military
  • Aerospace
  • Chemical
Materials:
  • Standard body material: Stainless Steel
Body Size Max. Operating Pressure Min. Burst Pressure Nominal Flow Diameter Rated Flow Air Inclusion Fluid Loss
1/4" 110 bar 1595 psi 438 bar 6352 psi 5.9 mm 8,3 lpm 2,2 gpm 2,2 cc. max 1 cc. max
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
2HKGL Series | Sockets
Part Number Coupling Type For Use with: Body Size End Connection Figure Dimensions
A B Hex
2HGRB Socket/Female Gas 1/4" 1/4" Hose Barb 3 2.16"
(54,8mm)		 1.65"
(41,9mm)		 -
2HLRB Socket/Female Liquid 1/4" 1/4" Hose Barb 3 2.16"
(54,8mm)		 1.65"
(41,9mm)		 -

2HGLLRA720 Socket/Female Gas 1/4" 7/16-20 Male UNF 4 2.10"
(53,3mm)		 1.43"
(36,3mm)		 -
2HLLLRA720 Socket/Female Liquid 1/4" 7/16-20 Male UNF 4 2.10"
(53,3mm)		 1.43"
(36,3mm)		 -

2HGBNB Socket/Female Gas 1/4" 1/4" Hose Barb 5 2.73"
(69,3mm)		 1.00"
(25,4mm)		 -
2HLBNB Socket/Female Liquid 1/4" 1/4" Hose Barb 5 1.64"
(41,6mm)		 0.83"
(21,0mm)		 -

2HGDNB Socket/Female Gas 1/4" 3/8" Hose Barb 5 2.73"
(69,3mm)		 1.00"
(25,4mm)		 -
2HLDNB Socket/Female Liquid 1/4" 3/8" Hose Barb 5 1.64"
(41,6mm)		 0.83"
(21,0mm)		 -

2HG720 Socket/Female Gas 1/4" 7/16-20 Male UNF 1 2.16"
(54,8mm)		 1.65"
(41,91mm)		 0.81"
(20,57mm)
2HL720 Socket/Female Liquid 1/4" 7/16-20 Male UNF 1 2.80"
(71,1mm)		 1.00"
(25,4mm)		 0.81"
(20,57mm)

2HG15 Socket/Female Gas 1/4" 1/4" Male NPT 1 2.73"
(69,3mm)		 1.00"
(25,4mm)		 0.81"
(20,57mm)
2HL15 Socket/Female Liquid 1/4" 1/4" Male NPT 1 1.60"
(40,6mm)		 0.83"
(21,08mm)		 0.81"
(20,57mm)

2HG20 Socket/Female Gas 1/4" 3/8" Male NPT 1 2.73"
(69,3mm)		 1.00"
(25,4mm)		 0.81"
(20,57mm)
2HL20 Socket/Female Liquid 1/4" 3/8" Male NPT 1 2.80"
(71,1mm)		 1.00"
(25,4mm)		 0.81"
(20,57mm)

2HG16 Socket/Female Gas 1/4" 1/4" Male NPT 2 2.73"
(69,3mm)		 1.00"
(25,4mm)		 0.81"
(20,57mm)
2HL16 Socket/Female Liquid 1/4" 1/4" Male NPT 2 2.16"
(54,8mm)		 1.09"
(27,68mm)		 0.81"
(20,57mm)
Figure 1
Figure 2
Figure 3
2HKGL Series | Plugs
Part Number Coupling Type For Use with: Body Size End Connection Figure Dimensions
C D Hex
2KGF16 Plug/Male Gas 1/4" 1/4" Female NPT 8 1.98"
(50,29mm)		 1.00"
(25,4mm)		 0.88"
(22,35mm)
2KLF16 Plug/Male Liquid 1/4" 1/4" Female NPT 8 1.82"
(46,22mm)		 0.90"
(22,8mm)		 0.88"
(22,35mm)

2KLF720 Plug/Male Liquid 1/4" 7/16-20 Female UNF 8 1.60"
(40,64mm)		 0.90"
(22,8mm)		 0.88"
(22,35mm)

2KGF15 Plug/Male Gas 1/4" 1/4" Female NPT 7 1.17"
(29,71mm)		 1.00"
(25,4mm)		 0.88"
(22,35mm)
2KLF15 Plug/Male Liquid 1/4" 1/4" Female NPT 7 2.00"
(50,8mm)		 0.95"
(24,1mm)		 0.88"
(22,35mm)

2KGF20 Plug/Male Gas 1/4" 3/8" Male NPT 7 1.97"
(50,03mm)		 0.95"
(24,1mm)		 0.88"
(22,35mm)
2KLF20 Plug/Male Liquid 1/4" 3/8" Male NPT 7 1.98"
(50,29mm)		 1.00"
(25,4mm)		 0.88"
(22,35mm)

2KGC Plug/Male Gas 1/4" 11/16-18 Female UNF 6 1.46"
(37,08mm)		 0.80"
(20,3mm)		 0.81"
(20,57mm)
2KLC Plug/Male Liquid 1/4" 11/16-18 Female UNF 6 1.46"
(37,08mm)		 1.00"
(25,4mm)		 0.88"
(22,35mm)

2KLS3 Plug/Male Liquid 1/4" 7/16-20 Female UNF 6 1.45"
(36,83mm)		 0,75"
(19,5mm)		 0.86"
(21,84mm)
