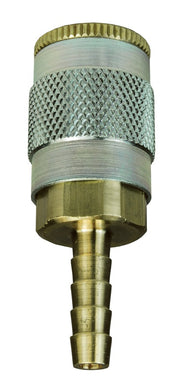

2JS2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | J-Series | Hose Barb | 1/4" Hose ID x 1/4" Automotive Interchange | Socket | Nitrile Seal | Brass

Save $6.56

$14.23

$14.23 - $14.23

$14.23

$7.67

$7.67 - $7.67

$7.67

Dixon Valve & Coupling
Pneumatic Coupling: J-Series Automotive Interchange Coupler (Standard Hose Barb)

Specifications for Variant SKU: 2JS2-B Dixon
Series:	J-Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female Tru-Flate QD Interchange, 1/4in Hose Barb
Material(s):	Brass, Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Compatibility & Interchange:	Truflate Automotive Interchange Parker 10 Series, Rectus 55KM and Tomco A2100/PT400
Construction:	Machined components are manufactured using solid bar stock. Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life. Nitrile (Nitrile Rubber) seals are standard. (temperature range of -40°F to 250°F (-40°C to 121°C)) Steel componentry is plated using ROHS Compliant Trivalent Chrome. Steel sleeve and steel tubular valve.
Safety Notes:	Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application. Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death. It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

J-Series \| Automotive Interchange Coupler (Male Threads)

Part Number	Coupling Type	Body Size	Hose I.D.	Material	Length	Max. OD	Hex	Max. Working Pressure		Burst Pressure
Part Number	Coupling Type	Body Size	Hose I.D.	Material	Length	Max. OD	Hex	Brass Coupler & Brass Plug:	Brass Coupler & Steel Plug:	Brass Coupler & Brass Plug:	Brass Coupler & Steel Plug:
2JS2-B	Socket/Female	1/4"	1/4"	Brass	2.53" (64.3mm)	0.88" (22.4mm)	3/4"	300 PSI (20 bar)	500 PSI (35 bar)	10,500 PSI (724 bar)	11,500 PSI (793 bar)
2JS3-B	Socket/Female	1/4"	3/8"	Brass	2.53" (64.3mm)	0.88" (22.4mm)	3/4"	300 PSI (20 bar)	500 PSI (35 bar)	10,500 PSI (724 bar)	11,500 PSI (793 bar)
3JS2	Socket/Female	3/8"	1/4"	Steel	2.86" (72.6mm)	1.06" (26.9mm)	7/8"	Steel Coupler & Steel Plug: 500 PSI (35 bar)		Steel Coupler & Steel Plug: 18,000 PSI (1,241 bar)
3JS3	Socket/Female	3/8"	3/8"	Steel	2.86" (72.6mm)	1.06" (26.9mm)	7/8"	Steel Coupler & Steel Plug: 500 PSI (35 bar)		Steel Coupler & Steel Plug: 18,000 PSI (1,241 bar)
3JS4	Socket/Female	3/8"	1/2"	Steel	2.86" (72.6mm)	1.06" (26.9mm)	7/8"	Steel Coupler & Steel Plug: 500 PSI (35 bar)		Steel Coupler & Steel Plug: 18,000 PSI (1,241 bar)
4FS3	Socket/Female	1/2"	3/8"	Steel	3.49" (88.6mm)	1.19" (30.2mm)	1"	Steel Coupler & Steel Plug: 500 PSI (35 bar)		Steel Coupler & Steel Plug: 15,500 PSI (1,070 bar)
4FS4	Socket/Female	1/2"	1/2"	Steel	3.49" (88.6mm)	1.19" (30.2mm)	1"	Steel Coupler & Steel Plug: 500 PSI (35 bar)		Steel Coupler & Steel Plug: 15,500 PSI (1,070 bar)
4FS6	Socket/Female	1/2"	3/4"	Steel	3.49" (88.6mm)	1.19" (30.2mm)	1"	Steel Coupler & Steel Plug: 500 PSI (35 bar)		Steel Coupler & Steel Plug: 15,500 PSI (1,070 bar)

J-Series \| Automotive Interchange Plug (Standard Hose Barb)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Maximum OD	Hex	Working Pressure / Burst Pressure when Connected to:
J2S2	Plug/Male	1/4"	1/4"	Steel	1.99" (50.5mm)	0.56" (14.2mm)	-	Brass Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 11,500 PSI (793 bar) Burst
J2S3	Plug/Male	1/4"	3/8"	Steel	1.99" (50.5mm)	0.56" (14.2mm)	-	Brass Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 11,500 PSI (793 bar) Burst
J3S2	Plug/Male	3/8"	1/4"	Steel	2.18" (55.4mm)	0.75" (19.1mm)	-	Steel Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 18,000 PSI (1,241 bar) Burst
J3S3	Plug/Male	3/8"	3/8"	Steel	2.18" (55.4mm)	0.75" (19.1mm)	-	Steel Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 18,000 PSI (1,241 bar) Burst
J3S4	Plug/Male	3/8"	1/2"	Steel	2.18" (55.4mm)	0.75" (19.1mm)	-	Steel Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 18,000 PSI (1,241 bar) Burst
J4S3	Plug/Male	1/2"	3/8"	Steel	2.54" (64.5mm)	0.75" (19.1mm)	-	Steel Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 10,000 PSI (690 bar) Burst
J4S4	Plug/Male	1/2"	1/2"	Steel	2.54" (64.5mm)	0.75" (19.1mm)	-	Steel Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 10,000 PSI (690 bar) Burst
J4S6	Plug/Male	1/2"	3/4"	Steel	2.54" (64.5mm)	0.94" (23.9mm)	-	Steel Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 10,000 PSI (690 bar) Burst

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
