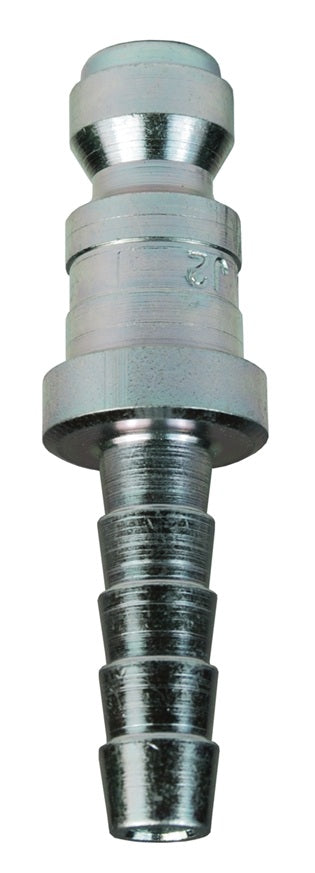

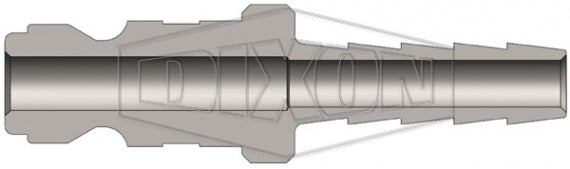

J4S6 by Dixon Valve | Pneumatic Quick Disconnect Coupling | J-Series | Hose Barb | 3/4" Hose ID x 1/2" Automotive Interchange | Plug | Steel

Save $0.54

$9.21

$9.21 - $9.21

$9.21

$8.67

$8.67 - $8.67

$8.67

Dixon Valve & Coupling
Pneumatic Coupling: J-Series Automotive Interchange Plug (Standard Hose Barb)

Quantity

Specifications for Variant SKU: J4S6 Dixon
Series:	J-Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male Tru-Flate QD Interchange, 3/4in Hose Barb
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Compatibility & Interchange:	Truflate Automotive Interchange Parker 10 Series, Rectus 55KM and Tomco A2100/PT400
Construction:	Machined components are manufactured using solid bar stock.
Safety Notes:	Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application. Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death. It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

J-Series \| Automotive Interchange Plug (Standard Hose Barb)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Maximum OD	Hex	Working Pressure / Burst Pressure when Connected to:
J2S2	Plug/Male	1/4"	1/4"	Steel	1.99" (50.5mm)	0.56" (14.2mm)	-	Brass Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 11,500 PSI (793 bar) Burst
J2S3	Plug/Male	1/4"	3/8"	Steel	1.99" (50.5mm)	0.56" (14.2mm)	-	Brass Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 11,500 PSI (793 bar) Burst
J3S2	Plug/Male	3/8"	1/4"	Steel	2.18" (55.4mm)	0.75" (19.1mm)	-	Steel Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 18,000 PSI (1,241 bar) Burst
J3S3	Plug/Male	3/8"	3/8"	Steel	2.18" (55.4mm)	0.75" (19.1mm)	-	Steel Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 18,000 PSI (1,241 bar) Burst
J3S4	Plug/Male	3/8"	1/2"	Steel	2.18" (55.4mm)	0.75" (19.1mm)	-	Steel Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 18,000 PSI (1,241 bar) Burst
J4S3	Plug/Male	1/2"	3/8"	Steel	2.54" (64.5mm)	0.75" (19.1mm)	-	Steel Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 10,000 PSI (690 bar) Burst
J4S4	Plug/Male	1/2"	1/2"	Steel	2.54" (64.5mm)	0.75" (19.1mm)	-	Steel Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 10,000 PSI (690 bar) Burst
J4S6	Plug/Male	1/2"	3/4"	Steel	2.54" (64.5mm)	0.94" (23.9mm)	-	Steel Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 10,000 PSI (690 bar) Burst
