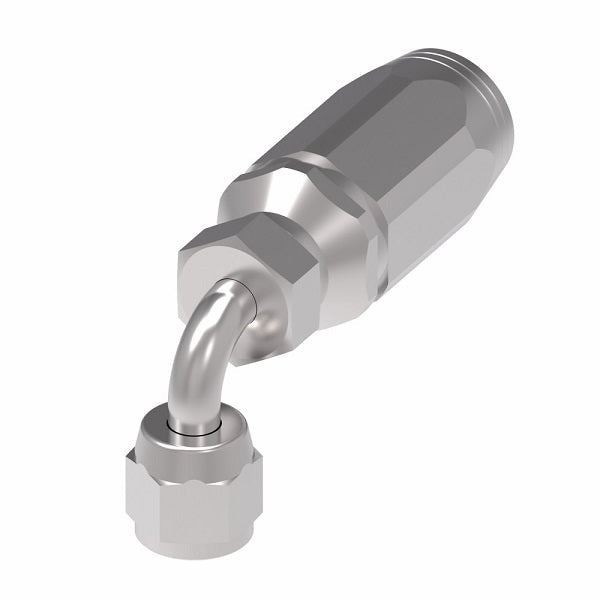

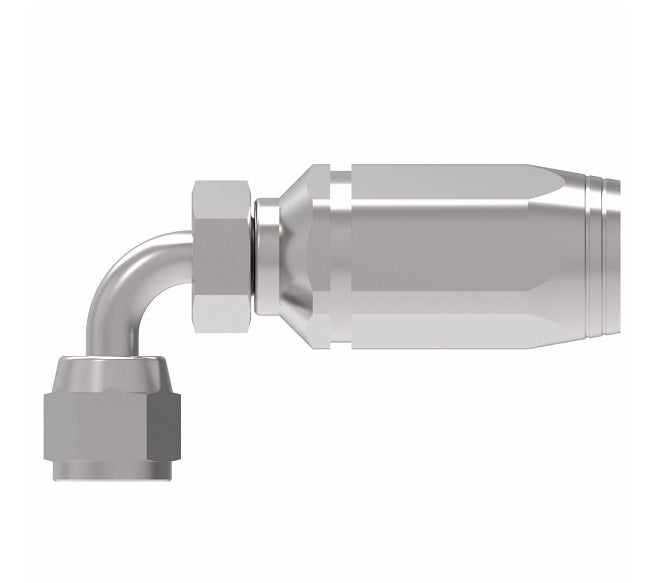

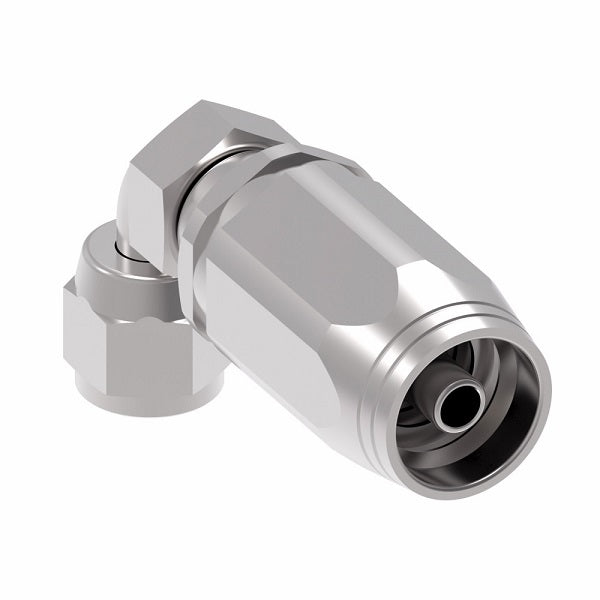

2RA12FJB12 Weatherhead by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
2RA12FJB12 Weatherhead by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
2RA12FJB12 Weatherhead by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
2RA12FJB12 Weatherhead by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

2RA12FJB12 Weatherhead by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

$95.18 - $95.18
$95.18
$95.18 - $95.18
$95.18

Weatherhead by Danfoss
Field Attachable Fitting for 2 Wire Braided Hose - 2R Series - Female 37° JIC Swivel Short Drop - 90° Elbow
Specifications for Variant SKU: 2RA12FJB12 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female JIC, 3/4in Reusable Hose End
Material(s): Steel
Special Properties: Short Drop, Swivel
Compatible with the following Series: H280 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash H
2RA4FJB4 185264-4S 2RA4 7/16-20 -04 2.40" 1.23" 0.17" 0.68"
2RA6FJB6 185264-6S 2RA6 9/16-18 -06 2.72" 1.38" 0.31" 0.85"
2RA8FJB8 185264-8S 2RA8 3/4-16 -08 3.02" 1.52" 0.39" 1.09"
2RA12FJB12 185264-12S 2RA12 1-1/16-12 -12 4.11" 2.24" 0.61" 1.82"
2RA16FJB16 185264-16S 2RA16 1-5/16-12 -16 4.84" 2.79" 0.82" 2.39"
