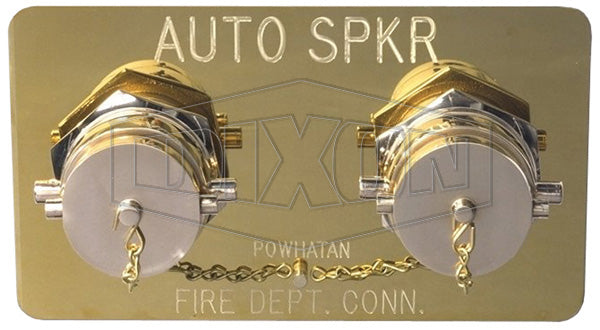

2WCA6025F-C Dixon AutoSprinkler Polished Chrome Plated Cast Brass Double Clapper Concealed Type Siamese Assembly - 6" Female NPT Outlet x Two 2-1/2" Female NST(NH) Inlets

2WCA6025F-C Dixon AutoSprinkler Polished Chrome Plated Cast Brass Double Clapper Concealed Type Siamese Assembly - 6" Female NPT Outlet x Two 2-1/2" Female NST(NH) Inlets

Save $1,549.45 Save $1,549.45
$3,873.62
$3,873.62 - $3,873.62
$3,873.62
$2,324.17
$2,324.17 - $2,324.17
$2,324.17

Dixon Fire Fittings
Double Clapper Concealed Type Siamese Assembly
Specifications for Variant SKU: 2WCA6025F-C Dixon
Shape (Orientation): Straight
Ends Configuration: 6in Female NPT, 2-1/2in Female NST
Material(s): Chrome Plated Brass
Special Properties: Polished
Features:
  • Fully reversible with a perpendicular trunnion allowing one body to be installed for top and bottom connections.
  • Complete unit consists of:
    (1) 4025REV90 or 4030REV90 or 90CREV6025
    (1) 24-385 plate
    (2) 23-270 double female connections
    (2) 17-127 plugs with chains
  • Maximum operating pressure: 250 PSI
Part Number Finish Branding Outlet Inlets (Two) Weight
(Lbs.)
2WCA4025F-P Polished AutoSprinkler 4" Female NPT 2-1/2" Female NST(NH) 30.6400
2WCA4025F-SP-P Polished StandPipe 4" Female NPT 2-1/2" Female NST(NH) 31.8500
2WCA4025F-C Polished Chrome Plated AutoSprinkler 4" Female NPT 2-1/2" Female NST(NH) 29.7650
2WCA4025F-SP-C Polished Chrome Plated StandPipe 4" Female NPT 2-1/2" Female NST(NH) 29.3300
2WCA4030F-P Polished AutoSprinkler 4" Female NPT 3" Female NST(NH) 24.5010
2WCA6025F-P Polished AutoSprinkler 6" Female NPT 2-1/2" Female NST(NH) 34.6400
2WCA6025F-SP-P Polished StandPipe 6" Female NPT 2-1/2" Female NST(NH) 35.8500
2WCA6025F-C Polished Chrome Plated AutoSprinkler 6" Female NPT 2-1/2" Female NST(NH) 33.7650
2WCA6025F-SP-C Polished Chrome Plated StandPipe 6" Female NPT 2-1/2" Female NST(NH) 33.3300
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
