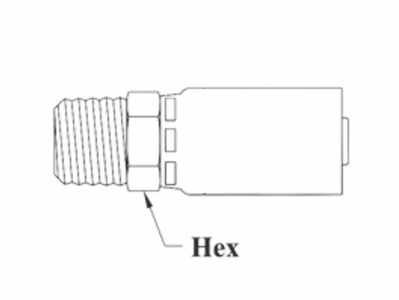

3-04102 Couplamatic 3 Series Coupling - NPTF - Male Solid - 1/4" Hose ID - 1/8-27 Thread Size

3-04102 by Couplamatic | 3 Series Coupling | 1/4" Hose ID x 1/8-27 Thread Size NPTF Male Solid | Straight | Trivalent Zinc Plating

Save $0.42 Save $0.42
$3.80
$3.80 - $3.80
$3.80
$3.38
$3.38 - $3.38
$3.38

Couplamatic Systems Inc.
3 Series Thermoplastic Hose Couplings - NPTF - Male Solid
Specifications for Variant SKU: 3-04102 Couplamatic
Series: 3 Series
Shape (Orientation): Straight
Ends Configuration: 1/8in Male NPTF, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: H7 Series  |   H7NC Series  |   H7TL Series  |   H7LNC Series  |   HS8 Series  |   HS8NC Series  |   R18 Series
Description:
  • Coupling may be used in Couplamatic Systems Inc., Synflex, and Parker Hannifin Swage machines.
  • Thermoplastic Couplings may be swaged or crimped.
  • Not for use on reduced OD 100R7.
  • Trivalent Zinc Plating
    		•
    Part Number Hose ID Pipe Size Thread Size Hex Size Die
    4540-    		 Pusher
    4599-    		 Cross Reference Part Numbers
    Parker 55 SYNFLEX 3903
    3-02102 1/8" 1/8" 1/8-27 1/2" 302 MP023 10155-2-2 3903-02102
    3-02104 1/8" 1/4" 1/4-18 5/8" 302 MP026 - -
    3-03102 3/16" 1/8" 1/8-27 9/16" 303 MP001 10155-2-3 3903-03102
    3-03104 3/16" 1/4" 1/4-18 11/16" 303 MP004 10155-4-3 3903-03104
    3-04102 1/4" 1/8" 1/8-27 5/8" 304 MP002 10155-2-4 3903-04102
    3-04104 1/4" 1/4" 1/4-18 11/16" 304 MP004 10155-4-4 3903-04104
    3-04106 1/4" 3/8" 3/8-18 3/4" 304 MP005 10155-6-4 3903-04106
    3-05104 5/16" 1/4" 1/4-18 11/16" 305 MP004 10155-4-5 3903-05104
    3-05106 5/16" 3/8" 3/8-18 3/4" 305 MP005 10155-6-5 3903-05106
    3-06104 3/8" 1/4" 1/4-18 3/4" 306 MP005 10155-4-6 3903-06104
    3-06106 3/8" 3/8" 3/8-18 3/4" 306 MP005 10155-6-6 3903-06106
    3-06108 3/8" 1/2" 1/2-14 15/16" 306 MP009 10155-8-6 3903-06108
    3-08106 1/2" 3/8" 3/8-18 7/8" 308 MP008 10155-6-8 3903-08106
    3-08108 1/2" 1/2" 1/2-14 15/16" 308 MP009 10155-8-8 3903-08108
    3-12112 3/4" 3/4" 3/4-14 1-1/8" 312 MP011 10155-12-12 3903-12112
    3-16116 1" 1" 1-11-1/2 1-3/8" 316 MP013 10155-16-16 3903-16116
    Sewer Hose Couplings
    3H-12112 3/4" 3/4" 3/4-14 1-1/8" - MP011 - 390H-12112
    3H-16116 1" 1" 1-11-1/2 1-3/8" - MP013 10158-16-16 390H-16116

    The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
