3-04144 Couplamatic 3 Series Coupling - NPTF - Male Swivel - 1/4" Hose ID - 1/4-18 Thread Size

3-04144 by Couplamatic | 3 Series Coupling | 1/4" Hose ID x 1/4-18 Thread Size Male Swivel NPTF | Straight | Trivalent Zinc Plating

Save $0.59 Save $0.59
$5.27
$5.27 - $5.27
$5.27
$4.68
$4.68 - $4.68
$4.68

Couplamatic Systems Inc.
3 Series Thermoplastic Hose Couplings - NPTF - Male Swivel
Specifications for Variant SKU: 3-04144 Couplamatic
Series: 3 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPTF, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: H7 Series  |   H7NC Series  |   H7TL Series  |   H7LNC Series  |   HS8 Series  |   HS8NC Series  |   R18 Series
Description:
  • Swivel for installation purposes only. Leakage may occur at low pressure.
  • Coupling may be used in Couplamatic Systems Inc., Synflex, and Parker Hannifin Swage machines.
  • Thermoplastic Couplings may be swaged or crimped.
  • Not for use on reduced OD 100R7.
  • Trivalent Zinc Plating
    		•

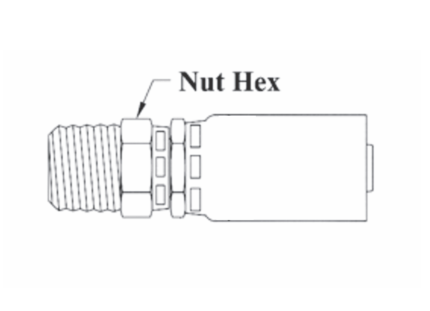

    Part Number Hose ID Pipe Size Thread Size Nut Hex Die
    4540-    		 Pusher
    4599-    		 Cross Reference Part Numbers
    Parker 55 SYNFLEX 3903
    3-03144 3/16" 1/4" 1/4-18 11/16" 303 MP003 11355-4-3 3903-03144
    3-04144 1/4" 1/4" 1/4-18 11/16" 304 MP003 11355-4-4 3903-04144
    3-06146 3/8" 3/8" 3/8-18 3/4" 306 MP006 11355-6-6 3903-06146
    3-08148 1/2" 1/2" 1/2-14 15/16" 308 MP010 11355-8-8 3903-08148

    The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
