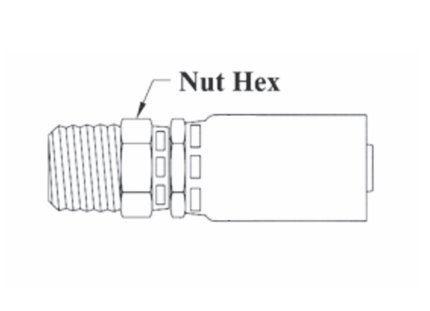

3-08148 Couplamatic 3 Series Coupling - NPTF - Male Swivel - 1/2" Hose ID - 1/2-14 Thread Size

3-08148 by Couplamatic | 3 Series Coupling | 1/2" Hose ID x 1/2-14 Thread Size Male Swivel NPTF | Straight | Trivalent Zinc Plating

Save $4.47 Save $4.47
$11.17
$11.17 - $11.17
$11.17
$6.70
$6.70 - $6.70
$6.70

Couplamatic Systems Inc.
3 Series Thermoplastic Hose Couplings - NPTF - Male Swivel
Specifications for Variant SKU: 3-08148 Couplamatic
Series: 3 Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPTF, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: H7 Series  |   H7NC Series  |   H7TL Series  |   H7LNC Series  |   HS8 Series  |   HS8NC Series  |   R18 Series
3 Series — Thermoplastic

3 3 Series Thermoplastic — NPTF Male Swivel, Straight

3 is the NPTF Male Swivel, Straight configuration of the 3 Series Thermoplastic system, terminating SAE 100R7, 100R8 and 100R18 thermoplastic hose.

1

What are the main product features?
  • Swivel for installation purposes only. Leakage may occur at low pressure.
  • Coupling may be used in Couplamatic Systems Inc., Synflex, and Parker Hannifin Swage machines.
  • Thermoplastic Couplings may be swaged or crimped
  • Not for use on reduced OD 100R7
  • Trivalent Zinc Plating
2

Which sizes are available?
Part Number Hose ID Pipe Size Thread Size Nut Hex Die
4540-		 Pusher
4599-		 Cross Reference Part Numbers
Parker 55 SYNFLEX 3903
3-03144 3/16" 1/4" 1/4-18 11/16" 303 MP003 11355-4-3 3903-03144
3-04144 1/4" 1/4" 1/4-18 11/16" 304 MP003 11355-4-4 3903-04144
3-06146 3/8" 3/8" 3/8-18 3/4" 306 MP006 11355-6-6 3903-06146
3-08148 1/2" 1/2" 1/2-14 15/16" 308 MP010 11355-8-8 3903-08148
i
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
