3-04474 Couplamatic 3 Series Coupling - O-Ring Face Seal (ORF) - 90° Female Swivel - 1/4" Hose ID - 9/16-18 Thread Size

3-04474 by Couplamatic | 3 Series Coupling | 1/4" Hose ID x 9/16-18 Thread Size O-Ring Face Seal | ORF Female Swivel | 90° Elbow | Trivalent Zinc Plating

Save $6.02 Save $6.02
$15.05
$15.05 - $15.05
$15.05
$9.03
$9.03 - $9.03
$9.03

Couplamatic Systems Inc.
3 Series Thermoplastic Hose Couplings - O-Ring Face Seal (ORF) - 90° Female Swivel
Specifications for Variant SKU: 3-04474 Couplamatic
Series: 3 Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Female O-Ring Face Seal, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: H7 Series  |   H7NC Series  |   H7TL Series  |   H7LNC Series  |   HS8 Series  |   HS8NC Series  |   R18 Series
Description:
  • Coupling may be used in Couplamatic Systems Inc., Synflex, and Parker Hannifin Swage machines.
  • Thermoplastic Couplings may be swaged or crimped.
  • Not for use on reduced OD 100R7.
  • Trivalent Zinc Plating
    		•

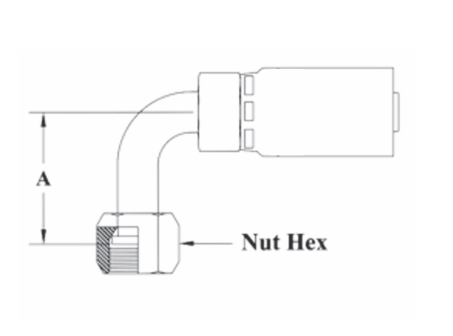

    Part Number Hose ID Thread Size Tube OD A-DropInches Nut Hex Die
    4540-    		 Pusher
    4599-    		 Cross Reference Part Numbers
    Parker 55 SYNFLEX 3903
    3-04474 1/4" 9/16-18 1/4" 0.78 11/16" 304 TP204 1J955-4-4 3903-04474
    3-05476 5/16" 11/16-16 3/8" 0.90" 13/16" 305 TP206 - -
    3-06476 3/8" 11/16-16 3/8" 0.90" 13/16" 306 TP206 1J955-6-6 3903-06476
    3-08478 1/2" 13/16-16 1/2" 1.15" 15/16" 308 TP30 1J955-8-8 3903-08478

    The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
