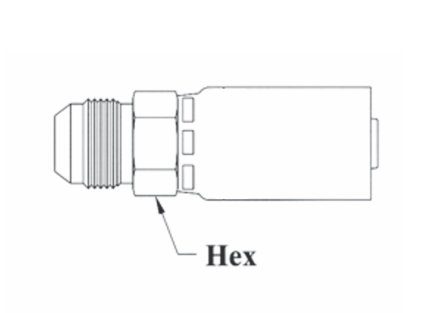

3-04505 Couplamatic 3 Series Coupling - JIC 37° - Male Solid - 1/4" Hose ID - 1/2-20 Thread Size

3-04505 by Couplamatic | 3 Series Coupling | 1/4" Hose ID x 1/2-20 Thread Size JIC 37° Male Solid | Straight | Trivalent Zinc Plating

Save $0.37 Save $0.37
$3.73
$3.73 - $3.73
$3.73
$3.36
$3.36 - $3.36
$3.36

Couplamatic Systems Inc.
3 Series Thermoplastic Hose Couplings - JIC 37° - Male Solid
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 3-04505 Couplamatic
Series: 3 Series
Shape (Orientation): Straight
Ends Configuration: 5/16in Male JIC, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: H7 Series  |   H7NC Series  |   H7TL Series  |   H7LNC Series  |   HS8 Series  |   HS8NC Series  |   R18 Series
Description:
  • Coupling may be used in Couplamatic Systems Inc., Synflex, and Parker Hannifin Swage machines.
  • Thermoplastic Couplings may be swaged or crimped.
  • Not for use on reduced OD 100R7.
  • Trivalent Zinc Plating
    		•
    Part Number Hose ID Thread Size Tube OD Hex Size Die
    4540-    		 Pusher
    4599-    		 Cross Reference Part Numbers
    Parker 55 SYNFLEX 3903
    3-03504 3/16" 7/16-20 1/4" 9/16" 303 MP001 10355-4-3 3903-03504
    3-04504 1/4" 7/16-20 1/4" 5/8" 304 MP002 10355-4-4 3903-04504
    3-04505 1/4" 1/2-20 5/16" 5/8" 304 MP002 10355-5-4 3903-04505
    3-04506 1/4" 9/16-18 3/8" 3/4" 304 MP005 - 3903-04506
    3-05506 5/16" 9/16-18 3/8" 11/16" 305 MP004 10355-6-5 3903-05506
    3-06506 3/8" 9/16-18 3/8" 3/4" 306 MP005 10355-6-6 3903-06506
    3-06508 3/8" 3/4-16 1/2" 13/16" 306 MP007 10355-8-6 3903-06508
    3-08508 1/2" 3/4-16 1/2" 7/8" 308 MP008 10355-8-8 3903-08508
    3-08510 1/2" 7/8-14 5/8" 15/16" 308 MP009 10355-10-8 3903-08510
    3-12512 3/4" 1-1/16x12 3/4" 1-1/8" 312 MP011 10355-12-12 3903-12512
