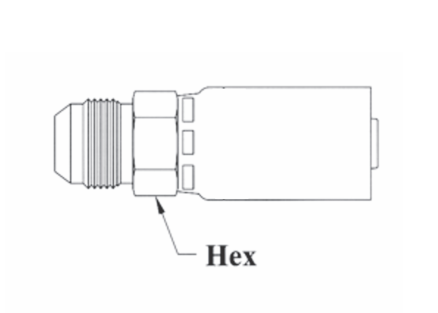

3-08508 Couplamatic 3 Series Coupling - JIC 37° - Male Solid - 1/2" Hose ID - 3/4-16 Thread Size

3-08508 by Couplamatic | 3 Series Coupling | 1/2" Hose ID x 3/4-16 Thread Size JIC 37° Male Solid | Straight | Trivalent Zinc Plating

Save $0.63 Save $0.63
$5.70
$5.70 - $5.70
$5.70
$5.07
$5.07 - $5.07
$5.07

Couplamatic Systems Inc.
3 Series Thermoplastic Hose Couplings - JIC 37° - Male Solid
Specifications for Variant SKU: 3-08508 Couplamatic
Series: 3 Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Male JIC, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: H7 Series  |   H7NC Series  |   H7TL Series  |   H7LNC Series  |   HS8 Series  |   HS8NC Series  |   R18 Series
Description:
  • Coupling may be used in Couplamatic Systems Inc., Synflex, and Parker Hannifin Swage machines.
  • Thermoplastic Couplings may be swaged or crimped.
  • Not for use on reduced OD 100R7.
  • Trivalent Zinc Plating
    		•
    Part Number Hose ID Thread Size Tube OD Hex Size Die
    4540-    		 Pusher
    4599-    		 Cross Reference Part Numbers
    Parker 55 SYNFLEX 3903
    3-03504 3/16" 7/16-20 1/4" 9/16" 303 MP001 10355-4-3 3903-03504
    3-04504 1/4" 7/16-20 1/4" 5/8" 304 MP002 10355-4-4 3903-04504
    3-04505 1/4" 1/2-20 5/16" 5/8" 304 MP002 10355-5-4 3903-04505
    3-04506 1/4" 9/16-18 3/8" 3/4" 304 MP005 - 3903-04506
    3-05506 5/16" 9/16-18 3/8" 11/16" 305 MP004 10355-6-5 3903-05506
    3-06506 3/8" 9/16-18 3/8" 3/4" 306 MP005 10355-6-6 3903-06506
    3-06508 3/8" 3/4-16 1/2" 13/16" 306 MP007 10355-8-6 3903-06508
    3-08508 1/2" 3/4-16 1/2" 7/8" 308 MP008 10355-8-8 3903-08508
    3-08510 1/2" 7/8-14 5/8" 15/16" 308 MP009 10355-10-8 3903-08510
    3-12512 3/4" 1-1/16x12 3/4" 1-1/8" 312 MP011 10355-12-12 3903-12512
