3-04644 Couplamatic 3 Series Coupling - JIC/SAE Dual Seat - 90° Female Swivel - 1/4" Hose ID - 7/16-20 Thread Size

3-04644 by Couplamatic | 3 Series Coupling | 1/4" Hose ID x 7/16-20 Thread Size JIC/SAE Dual Seat Female Swivel | 90° Elbow | Trivalent Zinc Plating

Save $5.85 Save $5.85
$14.62
$14.62 - $14.62
$14.62
$8.77
$8.77 - $8.77
$8.77

Couplamatic Systems Inc.
3 Series Thermoplastic Hose Couplings - JIC/SAE Dual Seat - 90° Female Swivel
Specifications for Variant SKU: 3-04644 Couplamatic
Series: 3 Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Female JIC, 1/4in Hose Barb, 1/4in Female SAE 45 Flare
Material(s): Steel
Compatible with the following Series: H7 Series  |   H7NC Series  |   H7TL Series  |   H7LNC Series  |   HS8 Series  |   HS8NC Series  |   R18 Series
3 Series — Thermoplastic

3 3 Series Thermoplastic — JIC, Female Swivel, 90° Elbow

3 is the JIC, Female Swivel, 90° Elbow configuration of the 3 Series Thermoplastic system, terminating SAE 100R7, 100R8 and 100R18 thermoplastic hose.

1

What are the main product features?
  • Coupling may be used in Couplamatic Systems Inc., Synflex, and Parker Hannifin Swage machines.
  • Thermoplastic Couplings may be swaged or crimped
  • Not for use on reduced OD 100R7
  • Trivalent Zinc Plating
2

Which sizes are available?

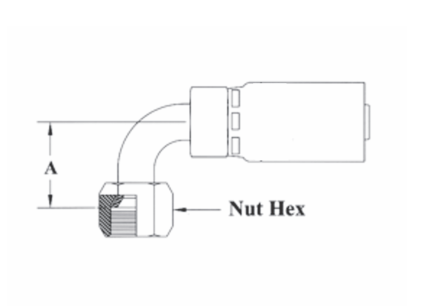

Part Number Hose ID Thread Size Tube OD A-DropInches Nut Hex Die
4540-		 Pusher
4599-		 Cross Reference Part Numbers
Parker 55 SYNFLEX 3903
3-03644 3/16" 7/16-20 1/4" 0.81" 9/16" 303 TP204 1L955-4-3 3903-03644
3-04644 1/4" 7/16-20 1/4" 0.81" 9/16" 304 TP204 1L955-4-4 3903-04644
3-04645 1/4" 1/2-20 5/16" 0.83" 5/8" 304 TP205 1L955-5-4 3903-04645
3-04646* 1/4" 9/16-18 3/8" 0.91" 11/16" 304 TP206 — —
3-05646* 5/16" 9/16-18 3/8" 0.91" 11/16" 305 TP206 — 3903-05646
3-06646* 3/8" 9/16-18 3/8" 0.91" 11/16" 306 TP206 1L955-6-6 3903-06646
3-06648 3/8" 3/4-16 1/2" 1.15" 7/8" 306 TP208 1L955-8-6 3903-06648
3-08648 1/2" 3/4-16 1/2" 1.15" 7/8" 308 TP308 1L955-8-8 3903-08648
3-08650 1/2" 7/8-14 5/8" 1.23 1" 308 TP310 1L955-10-8 3903-08650
i
JIC Seat and thread only The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
