3-04646 Couplamatic 3 Series Coupling - JIC Seat - 90° Female Swivel - 1/4" Hose ID - 9/16-18 Thread Size

3-04646 by Couplamatic | 3 Series Coupling | 1/4" Hose ID x 9/16-18 Thread Size JIC Seat Female Swivel | 90° Elbow | Trivalent Zinc Plating

Save $6.88 Save $6.88
$17.20
$17.20 - $17.20
$17.20
$10.32
$10.32 - $10.32
$10.32

Couplamatic Systems Inc.
3 Series Thermoplastic Hose Couplings - JIC/SAE Dual Seat - 90° Female Swivel
Specifications for Variant SKU: 3-04646 Couplamatic
Series: 3 Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Female JIC, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: H7 Series  |   H7NC Series  |   H7TL Series  |   H7LNC Series  |   HS8 Series  |   HS8NC Series  |   R18 Series
Description:
  • Coupling may be used in Couplamatic Systems Inc., Synflex, and Parker Hannifin Swage machines.
  • Thermoplastic Couplings may be swaged or crimped.
  • Not for use on reduced OD 100R7.
  • Trivalent Zinc Plating
    		•

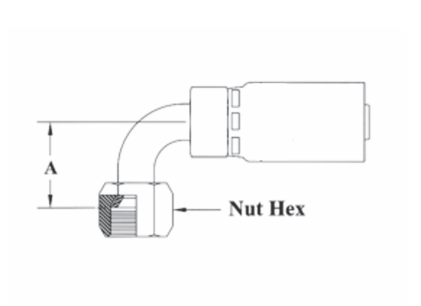

    Part Number Hose ID Thread Size Tube OD A-DropInches Nut Hex Die
    4540-    		 Pusher
    4599-    		 Cross Reference Part Numbers
    Parker 55 SYNFLEX 3903
    3-03644 3/16" 7/16-20 1/4" 0.81" 9/16" 303 TP204 1L955-4-3 3903-03644
    3-04644 1/4" 7/16-20 1/4" 0.81" 9/16" 304 TP204 1L955-4-4 3903-04644
    3-04645 1/4" 1/2-20 5/16" 0.83" 5/8" 304 TP205 1L955-5-4 3903-04645
    3-04646* 1/4" 9/16-18 3/8" 0.91" 11/16" 304 TP206 - -
    3-05646* 5/16" 9/16-18 3/8" 0.91" 11/16" 305 TP206 - 3903-05646
    3-06646* 3/8" 9/16-18 3/8" 0.91" 11/16" 306 TP206 1L955-6-6 3903-06646
    3-06648 3/8" 3/4-16 1/2" 1.15" 7/8" 306 TP208 1L955-8-6 3903-06648
    3-08648 1/2" 3/4-16 1/2" 1.15" 7/8" 308 TP308 1L955-8-8 3903-08648
    3-08650 1/2" 7/8-14 5/8" 1.23 1" 308 TP310 1L955-10-8 3903-08650

    *JIC Seat and thread only

    The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
